MOST Communication Enable

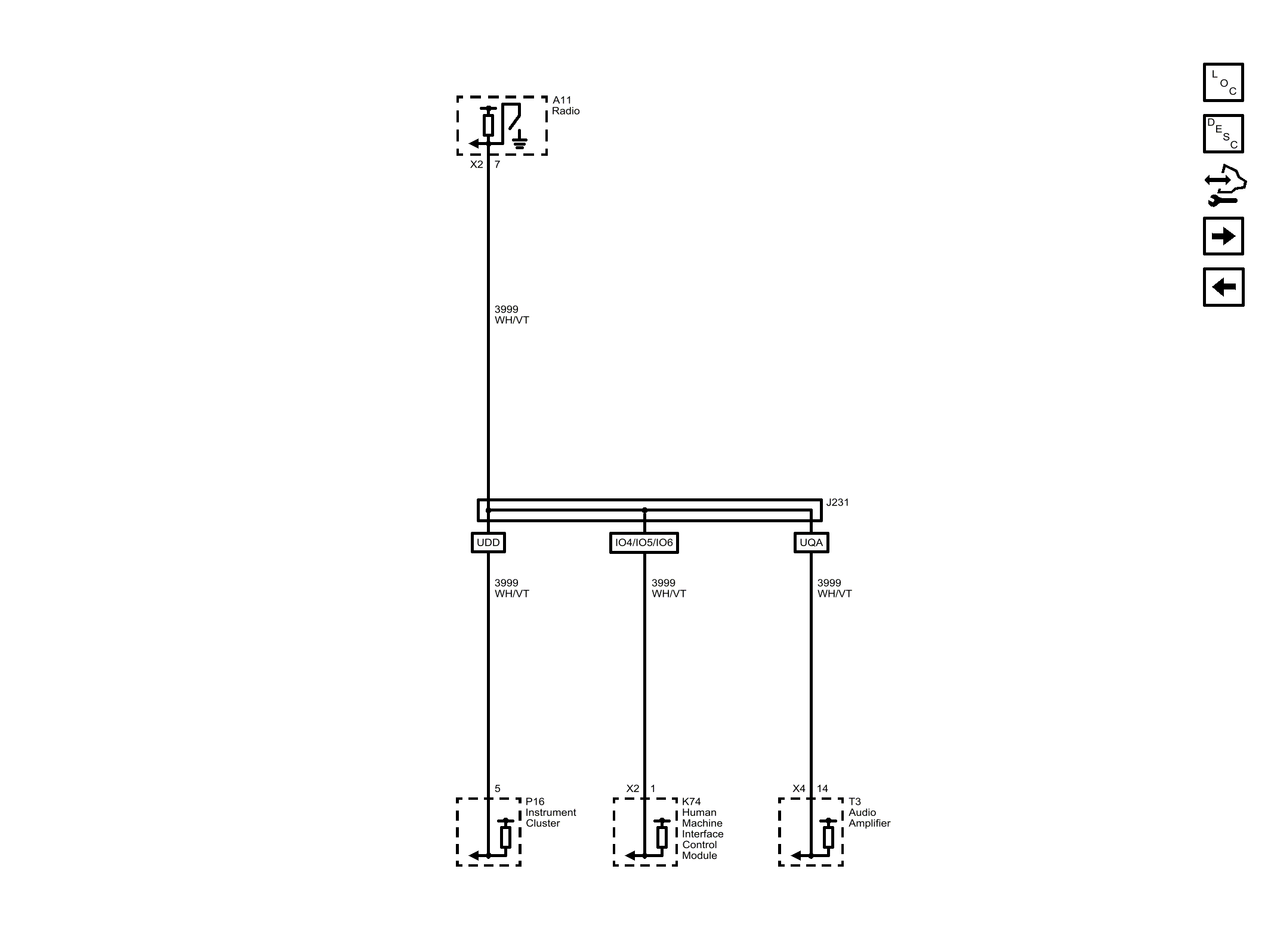

Fig 1: MOST Communication Enable
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
