Chassis Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

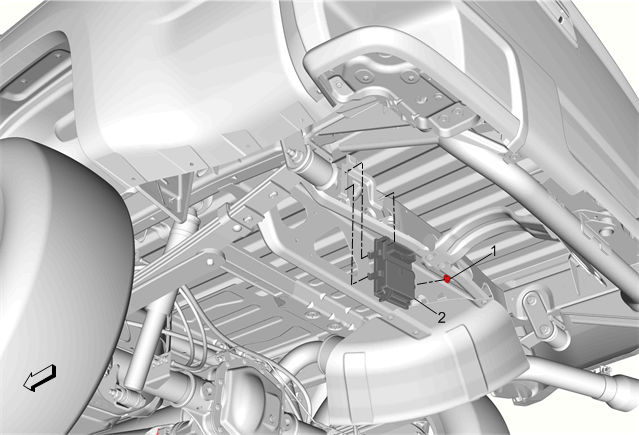

Fig 1: Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the spare tire.
1	Chassis Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Chassis Control Module Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Chassis Control Module Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Chassis Control Module
