Installation Procedure

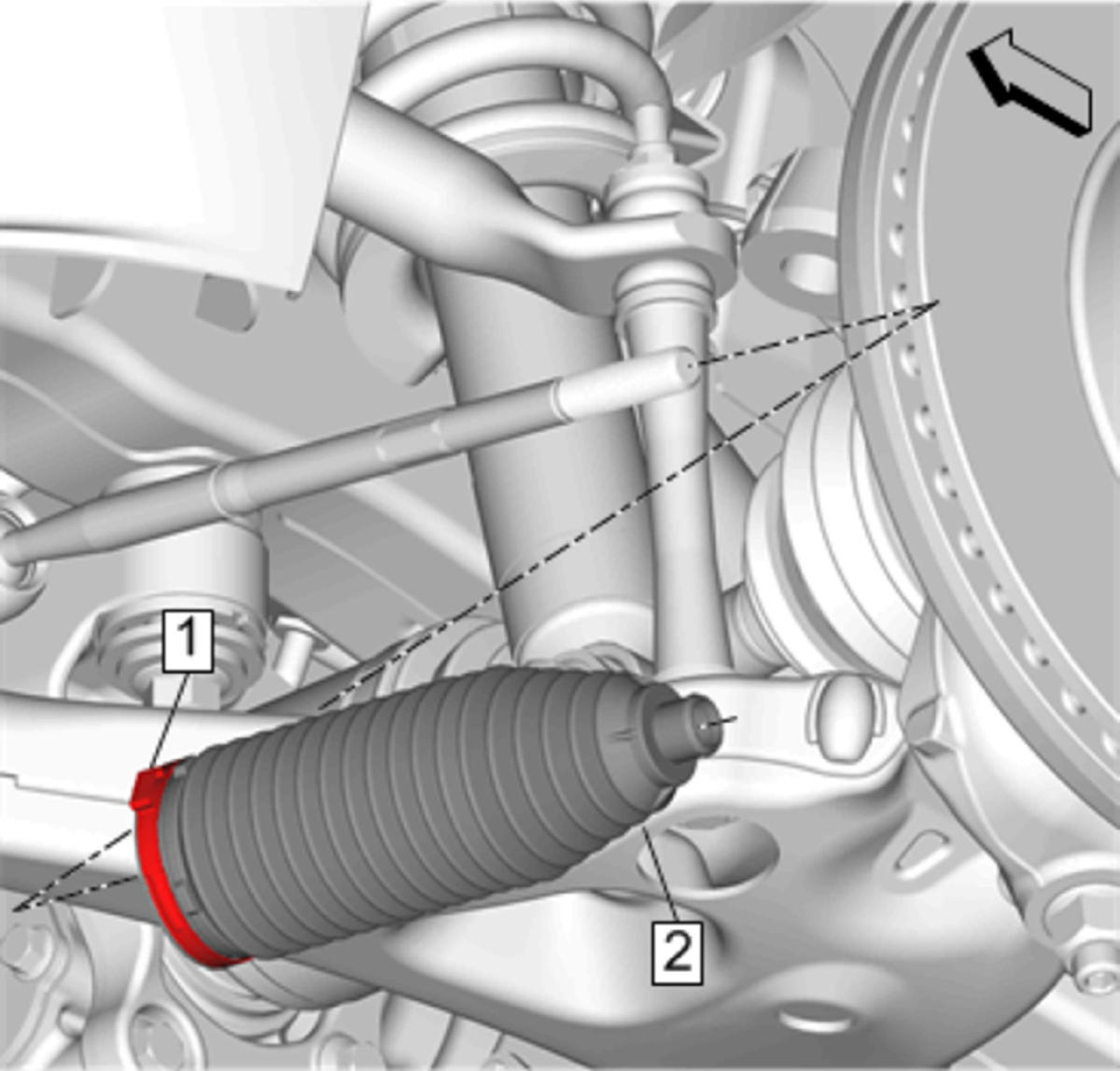

    Fig 1: Steering Gear Boot Inner Clamp
    GM3750676Courtesy of GENERAL MOTORS COMPANY
  1. Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
  2. Position the steering gear boot (2) on the steering gear.

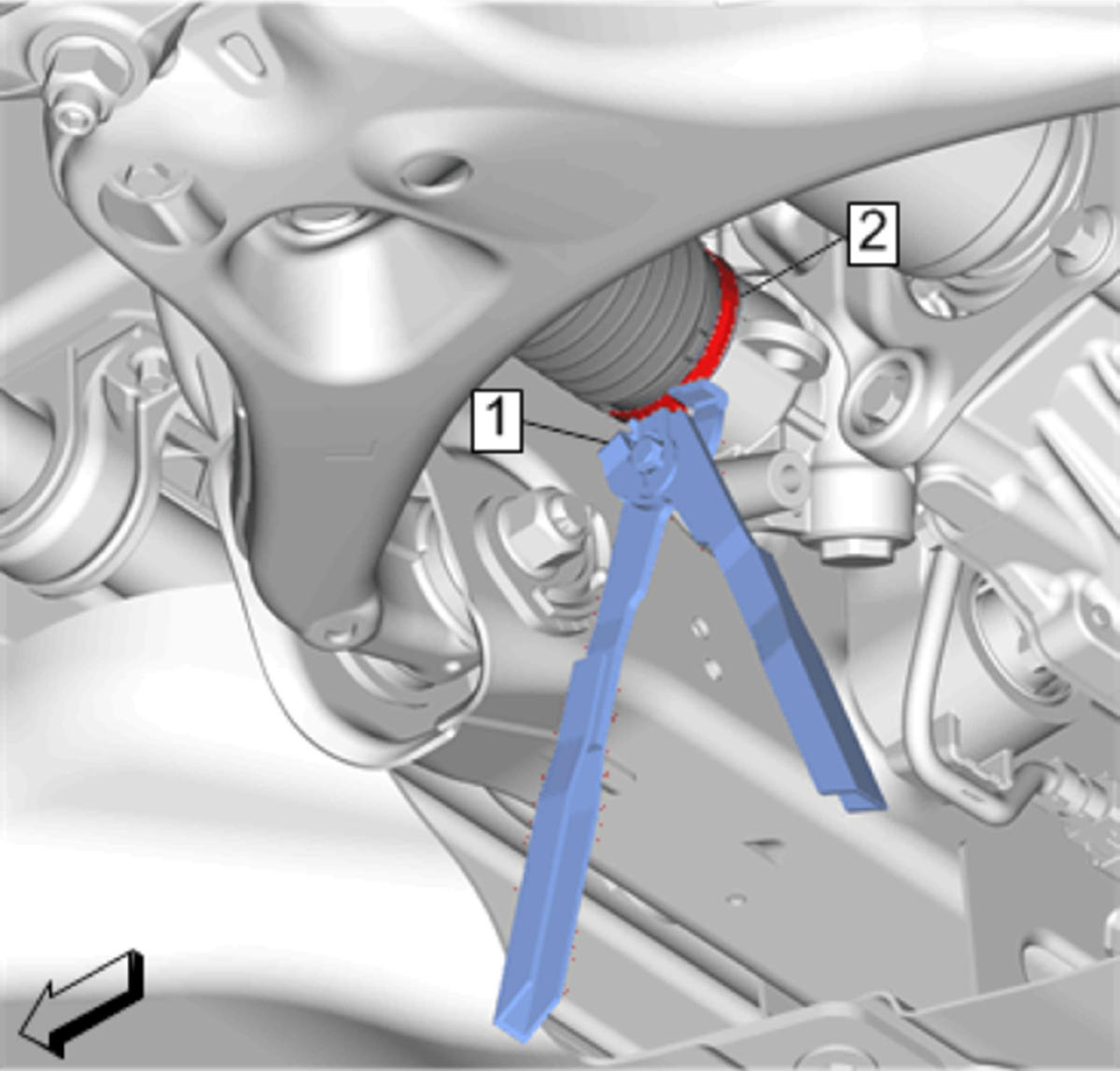

    3. Fig 2: J-22610 Pliers To Tighten Steering Gear Boot Inner Clamp
    GM3750111Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH-22610  pliers (1) to tighten the steering gear boot inner clamp (2).
    4. Fig 3: Steering Gear Boot Outer Clamp
    GM3750093Courtesy of GENERAL MOTORS COMPANY
  4. Install Steering Gear Boot Outer Clamp (2).
  5. Install Steering Linkage Inner Tie Rod Nut (1).
  6. Install Steering Linkage Outer Tie Rod.Steering Linkage Outer Tie Rod Replacement
  7. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
