Communication Interface Module Replacement

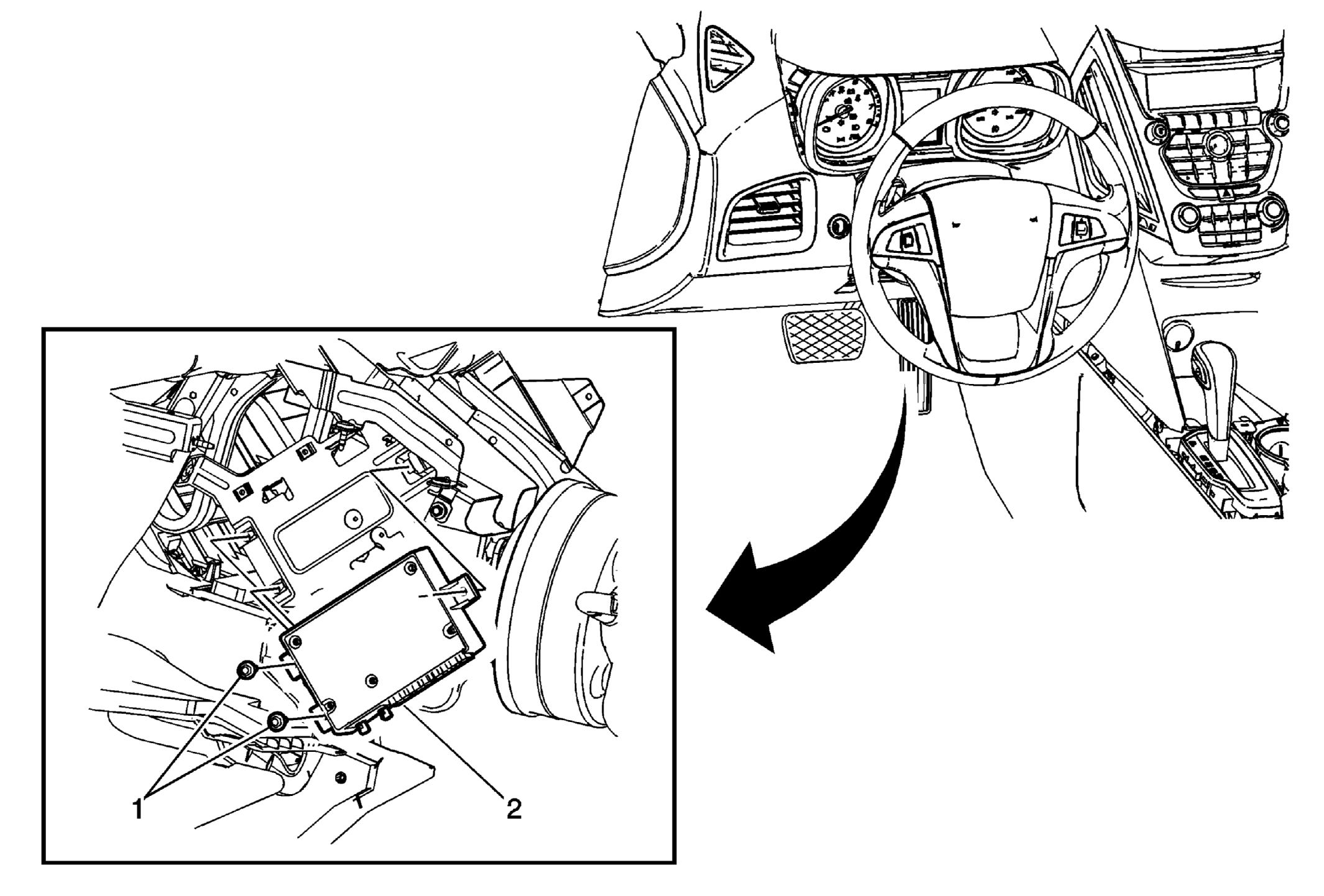

Fig 1: Communication Interface Module

GM2244748

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox)Driver Knee Bolster Reinforcement Replacement (Terrain)

1

Communication Interface Module Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

2

Communication Interface Module

Procedure

Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer bluetooth antenna, if equipped.
For programming and set up procedures, refer to Control Module References
