Active Safety Control Module Bracket Replacement

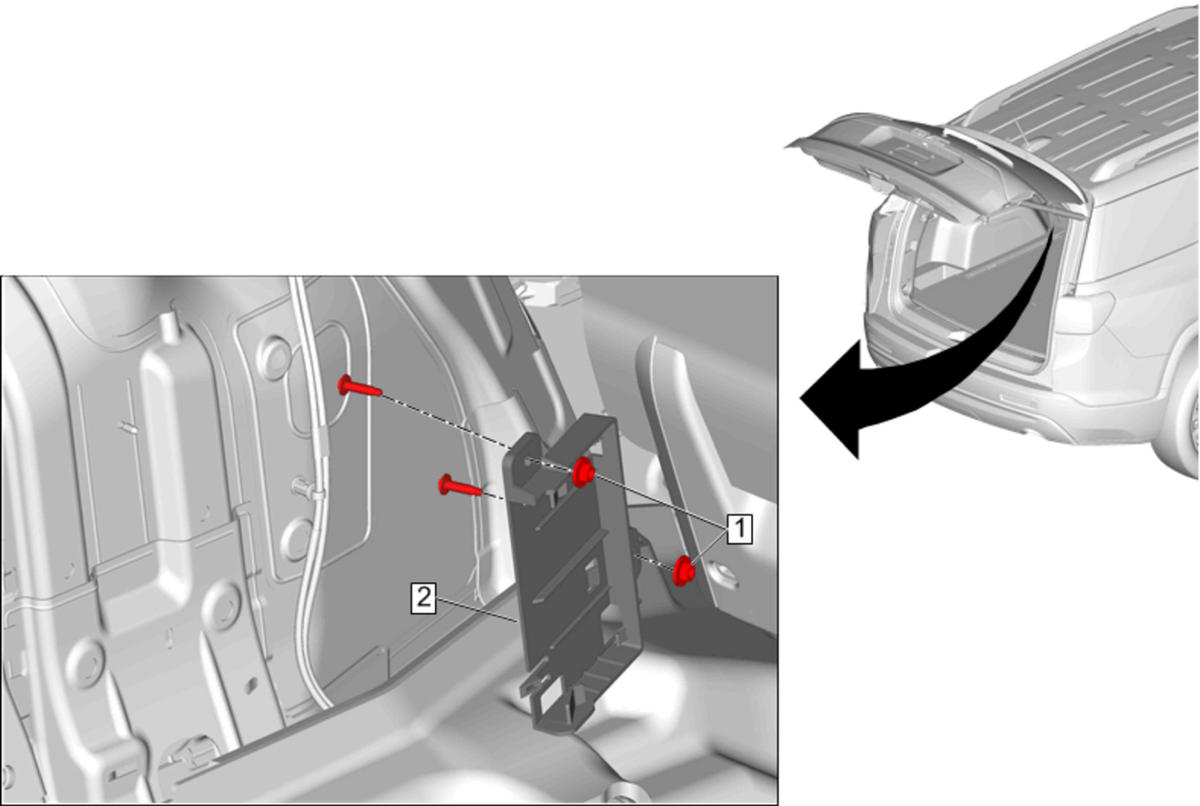

Fig 1: Active Safety Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Active Safety Control Module. Refer to Active Safety Control Module Replacement
1	Active Safety Control Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove Active Safety Control Module. Refer to Active Safety Control Module Replacement

Active Safety Control Module Bracket Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure
