Front View Driver Information Camera Bracket Replacement

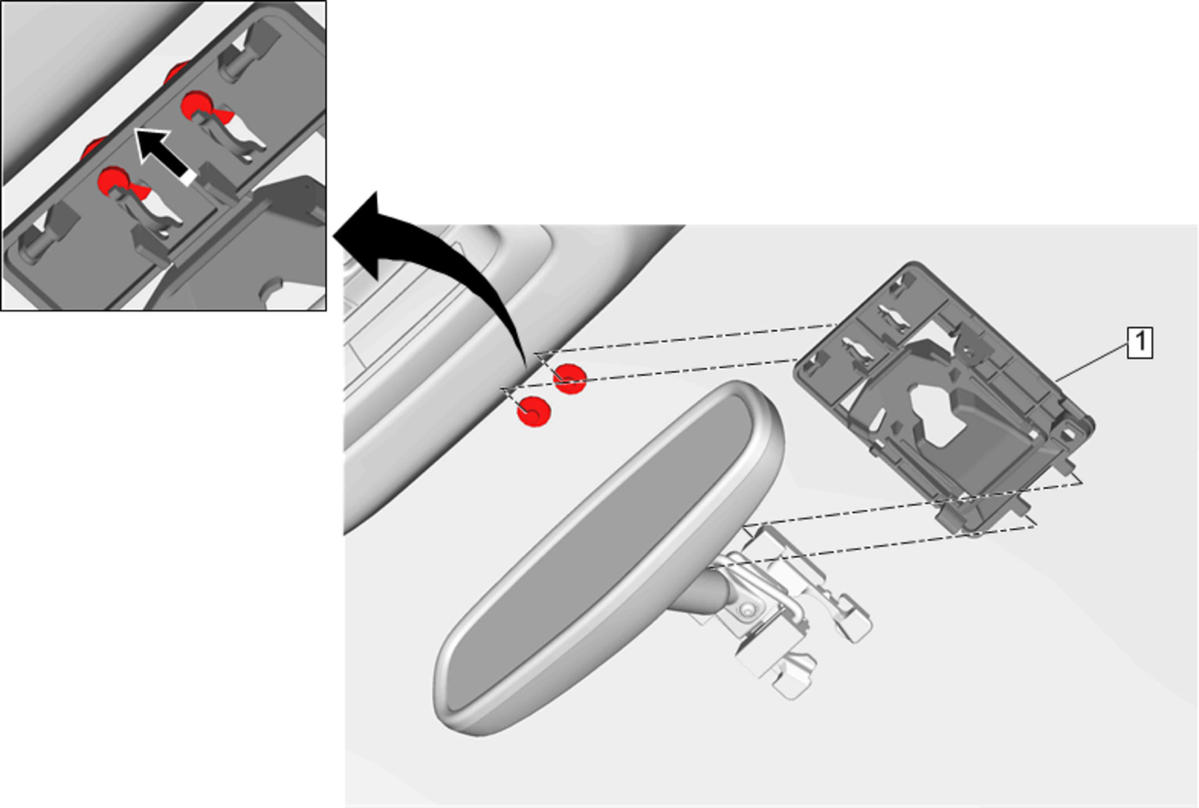

Fig 1: Front View Driver Information Camera Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front View Camera. Refer to Front View Camera Replacement
1	Front View Driver Information Camera Bracket Procedure Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield Ensure the inside of the windshield is clean before reinstalling the bracket. NOTE: Do Not remove or service the sensor farm pins.

Callout

Component Name

Preliminary Procedure
Remove Front View Camera. Refer to Front View Camera Replacement

Front View Driver Information Camera Bracket

Procedure

Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
