Parking Assist Control Module Replacement

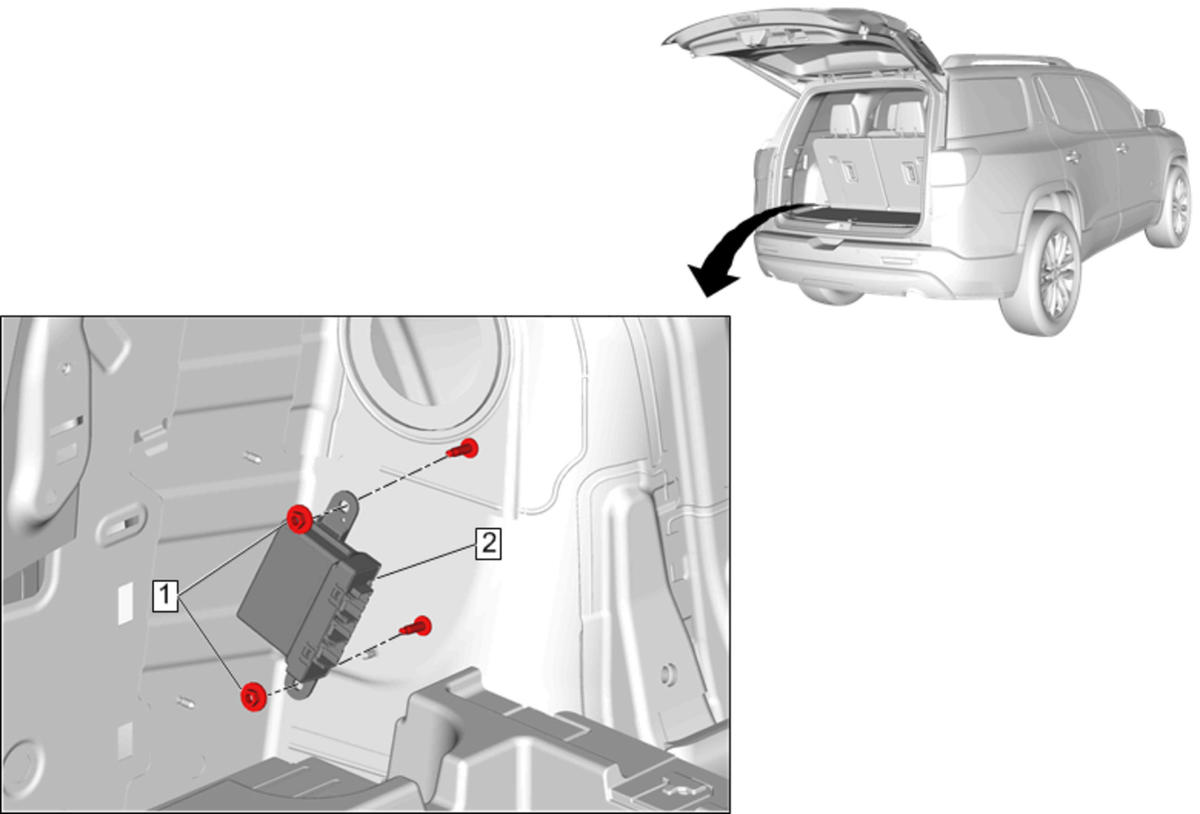

Fig 1: Parking Assist Control Module

GM4424522

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel - Left Side. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)

1

Parking Assist Alarm Control Module Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution

Tighten
4.5 N.m (40 lb in)

2

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
