Serial Data Gateway Module Replacement

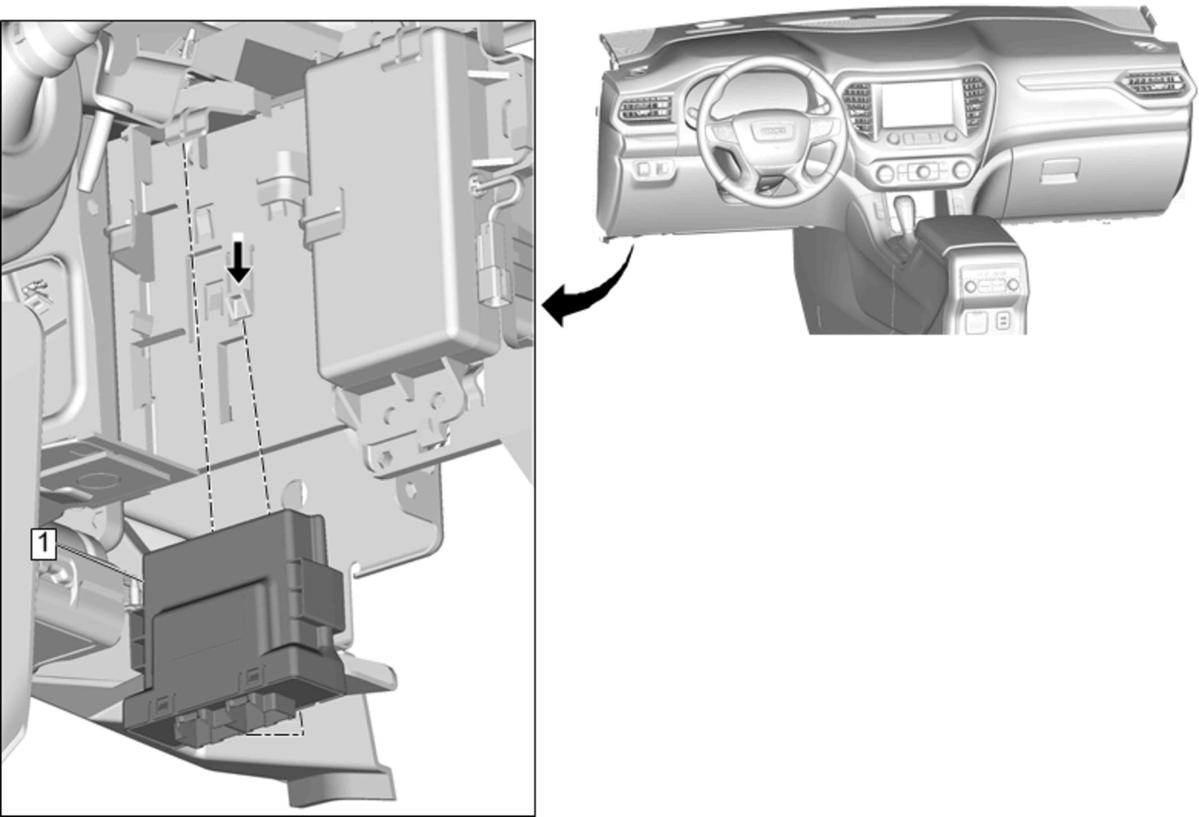

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Insulator - Left Side. Refer to Instrument Panel Insulator Replacement - Left Side

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
