Video Processing Module Replacement

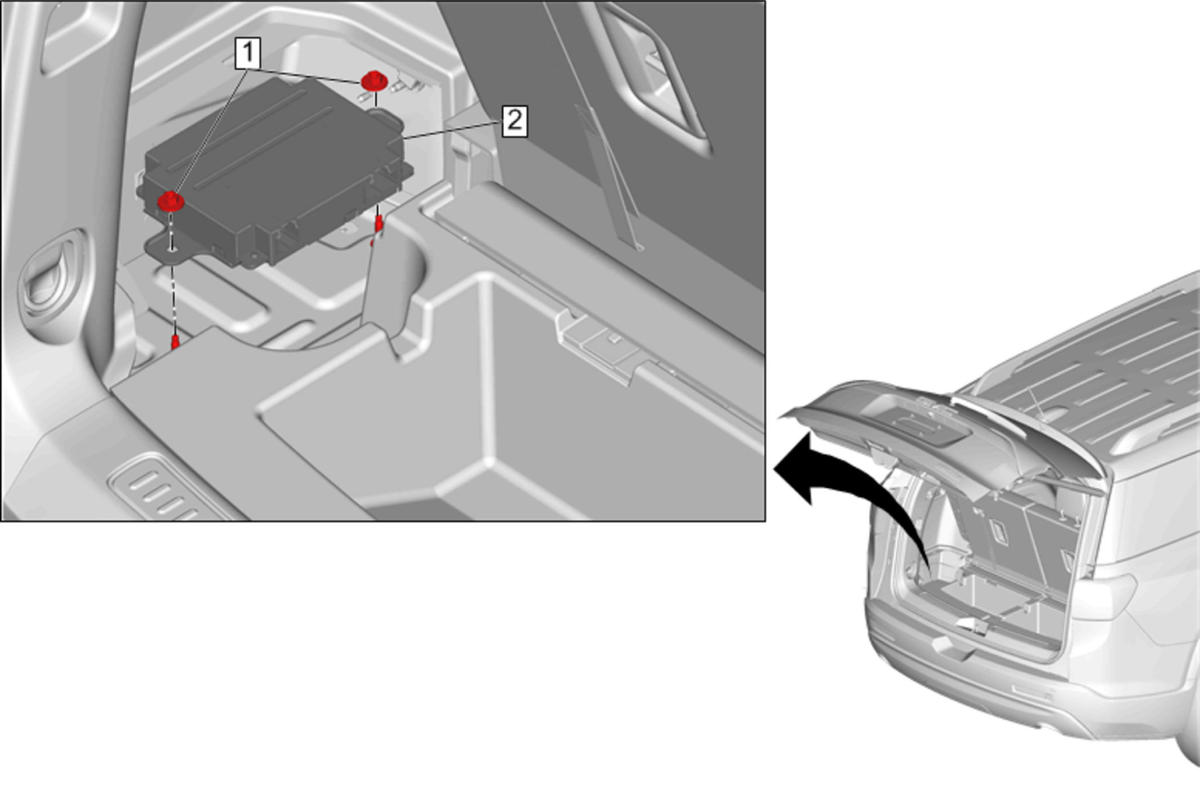

Fig 1: Video Processing Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Floor Stowage Side Rear Compartment. Refer to Rear Compartment Floor Stowage Side Rear Compartment Replacement
1	Video Processing Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Floor Stowage Side Rear Compartment. Refer to Rear Compartment Floor Stowage Side Rear Compartment Replacement

Video Processing Module Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
