Human Machine Interface Control Module Replacement

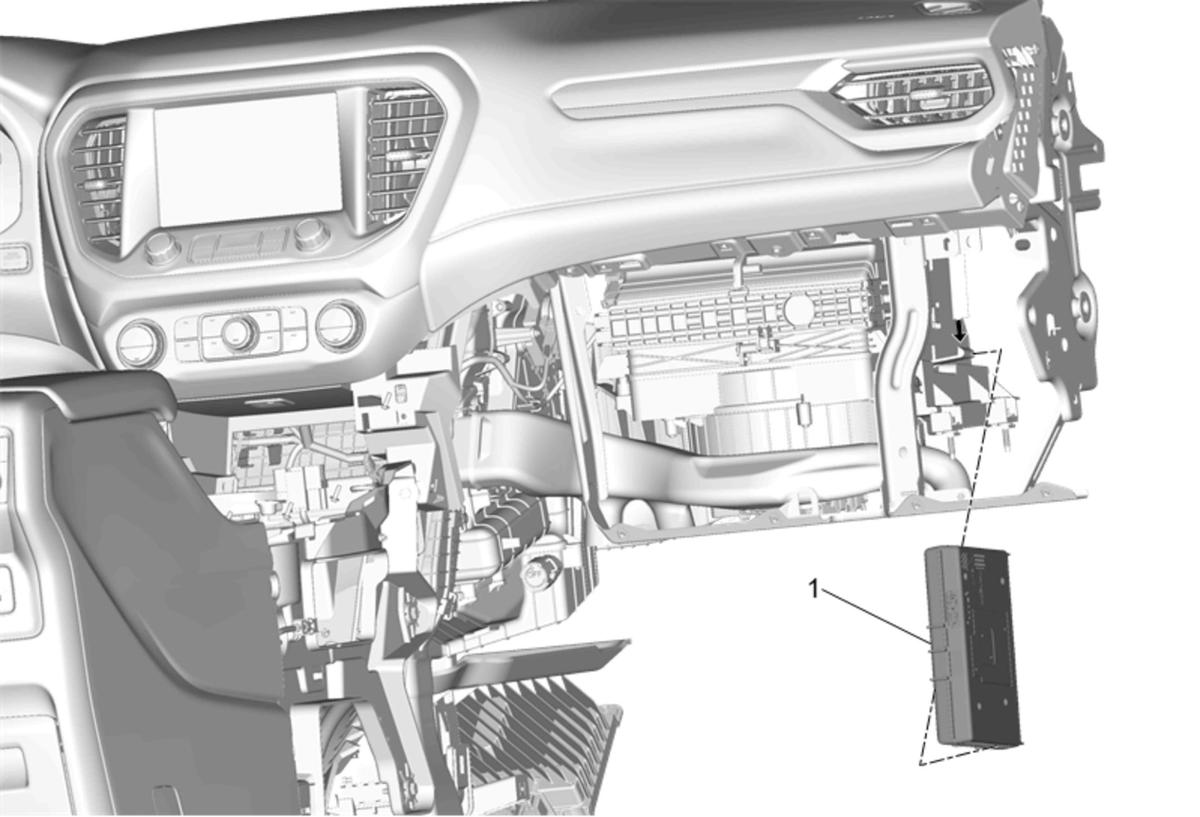

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Bracket. Refer to Radio Bracket Replacement
1	Human Machine Interface Control Module Procedure Release the retaining tab. Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Radio Bracket. Refer to Radio Bracket Replacement

Human Machine Interface Control Module

Procedure

Release the retaining tab.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
