Accessory AC and DC Power Control Module Bracket Replacement

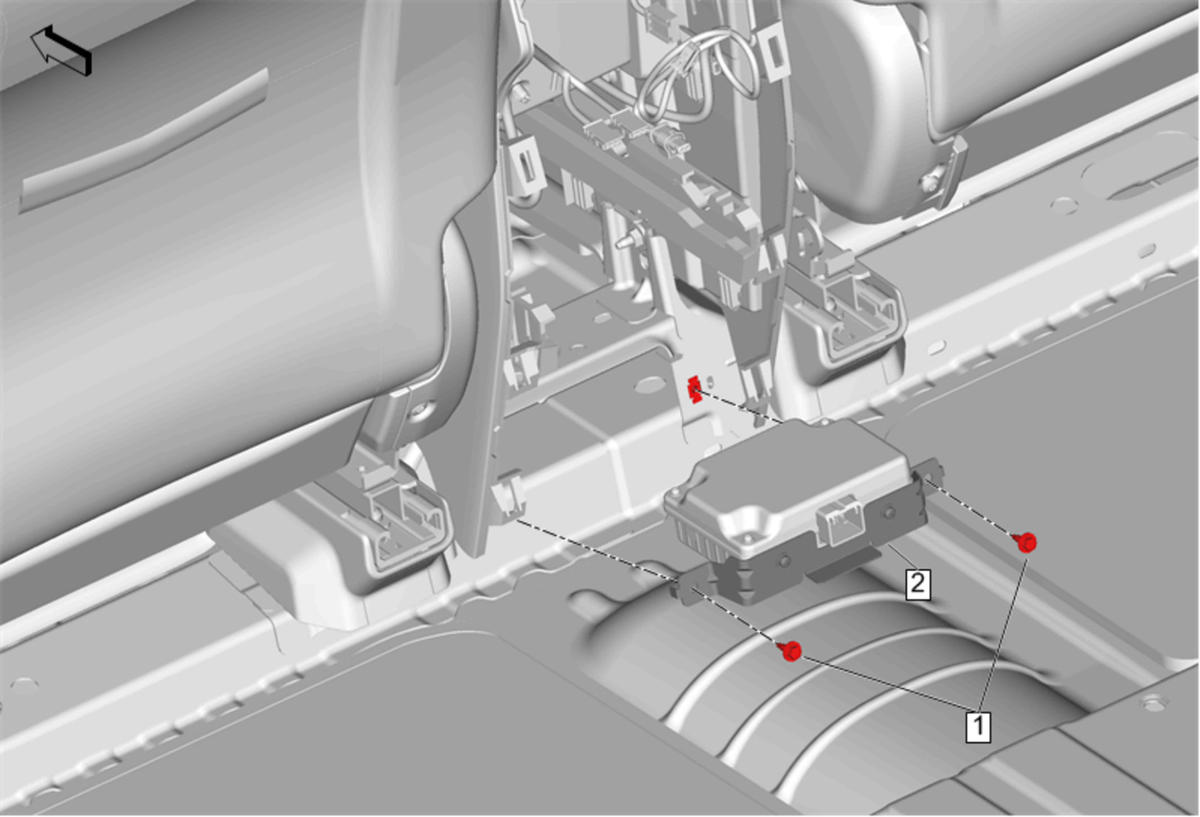

Fig 1: Accessory AC and DC Power Control Module Bracket
GM4420167Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9)
  2. Front Floor Console Rear Trim Panel Replacement
  3. Reposition the carpet, if necessary.
1 Accessory AC and DC Power Control Module Bolt (Qty: 2)
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Accessory AC and DC Power Control Module Bracket

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
  3. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9)
