Behind the Instrument Panel Components

Items
1: P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)
2: K74 Human Machine Interface Control Module (IO5/IO6) K74 Human Machine Interface Control Module X1 (IO5/IO6)K74 Human Machine Interface Control Module X2 (IO5/IO6)K74 Human Machine Interface Control Module X3 (IO5/IO6)K74 Human Machine Interface Control Module X5 (IO5/IO6)K74 Human Machine Interface Control Module X7 (IO6)
3: P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA)
4: P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU)
5: K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
6: P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)P19J Speaker - Left Instrument Panel (UQF)
7: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)K73 Telematics Communication Interface Control Module X5 (UE1)K73 Telematics Communication Interface Control Module X7 (UE1)
8: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)
9: X84 Data Link Connector X84 Data Link Connector
10: E8VA Floor Courtesy Lamp - Left Front E8VA Floor Courtesy Lamp - Left Front
11: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
12: T10U Keyless Entry Antenna - Instrument Panel T10U Keyless Entry Antenna - Instrument Panel
13: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
14: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel
15: K33 HVAC Control Module K33 HVAC Control Module X1
16: A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IO5/IO6/IOB)A11 Radio X2 (IO5/IO6)A11 Radio X2 (IOB)A11 Radio X3 (IO5/IO6)A11 Radio X3 (IOB)A11 Radio X4 A11 Radio X6 (U2K/U2L)A11 Radio X7 (IOB)
17: R6F Terminating Resistor - High Speed Extension Bus 2 R6F Terminating Resistor - High Speed Extension Bus 2

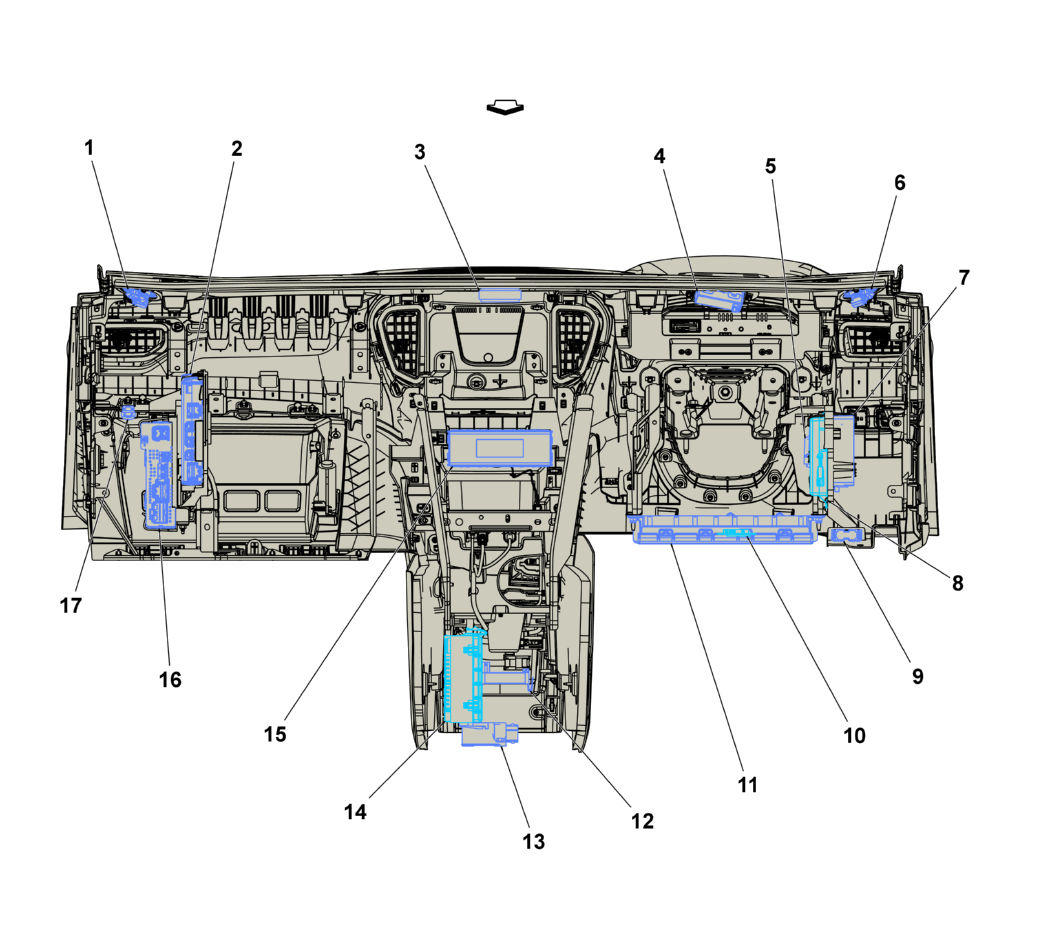

Fig 1: Behind the Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
