Center Console Components

Items
1: S3 Transmission Shift Lever S3 Transmission Shift Lever
2: A34 HVAC Controls - Auxiliary (C69) A34 HVAC Controls - Auxiliary (C69)
3: S126 Drive Mode Select Switch S126 Drive Mode Select Switch
4: P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
5: S32D Seat Heating Switch - Driver (KA1) S32D Seat Heating Switch - Driver (KA1)
6: X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front
7: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 X83 Auxiliary Audio Input X2
8: S32P Seat Heating Switch - Passenger (KA1) S32P Seat Heating Switch - Passenger (KA1)
9: S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
10: K89 Immobilizer Control Module K89 Immobilizer Control Module
11: T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
12: X92 USB Receptacle X92 USB Receptacle
13: X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6)
14: X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7)

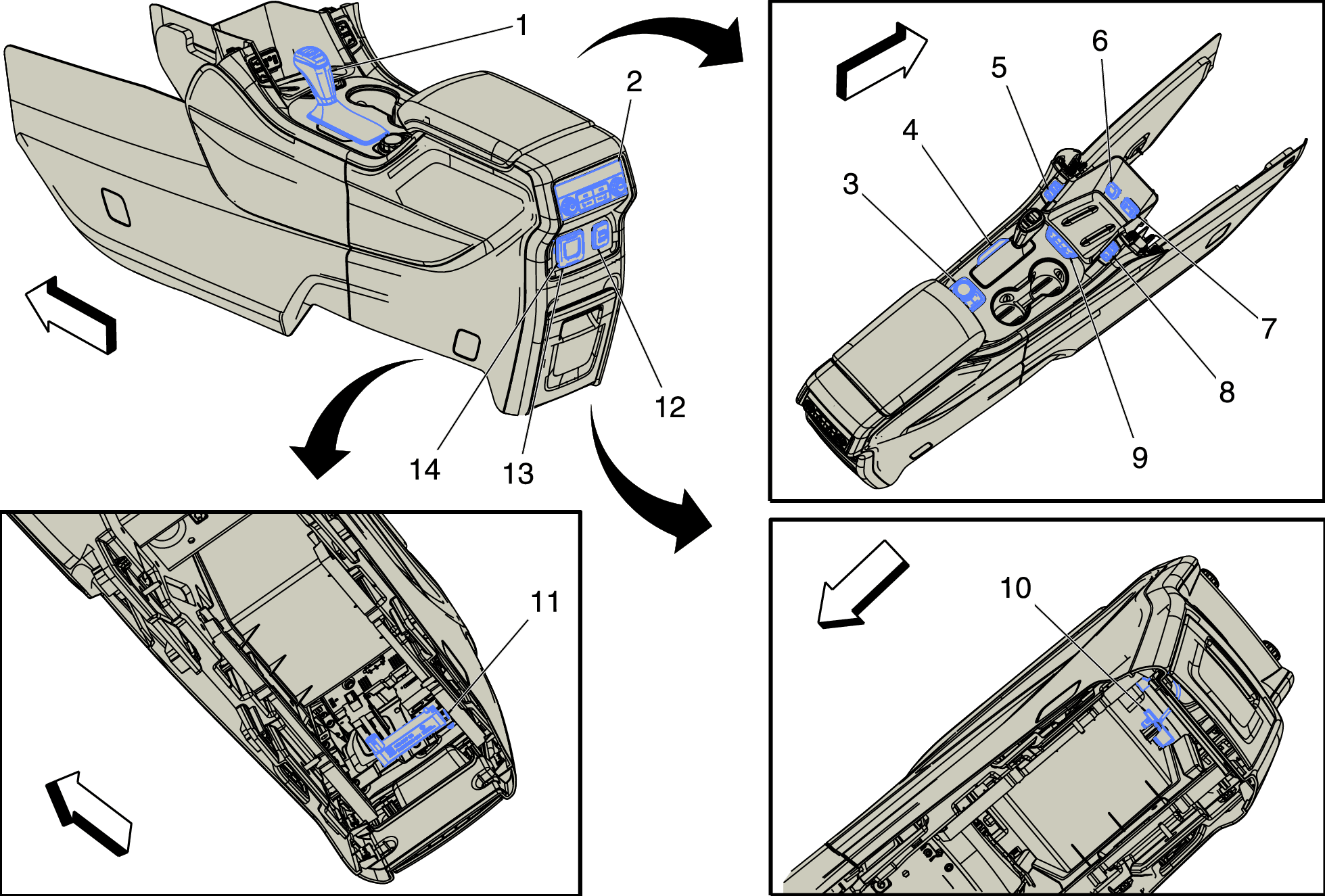

Fig 1: Center Console Components

Courtesy of GENERAL MOTORS COMPANY
