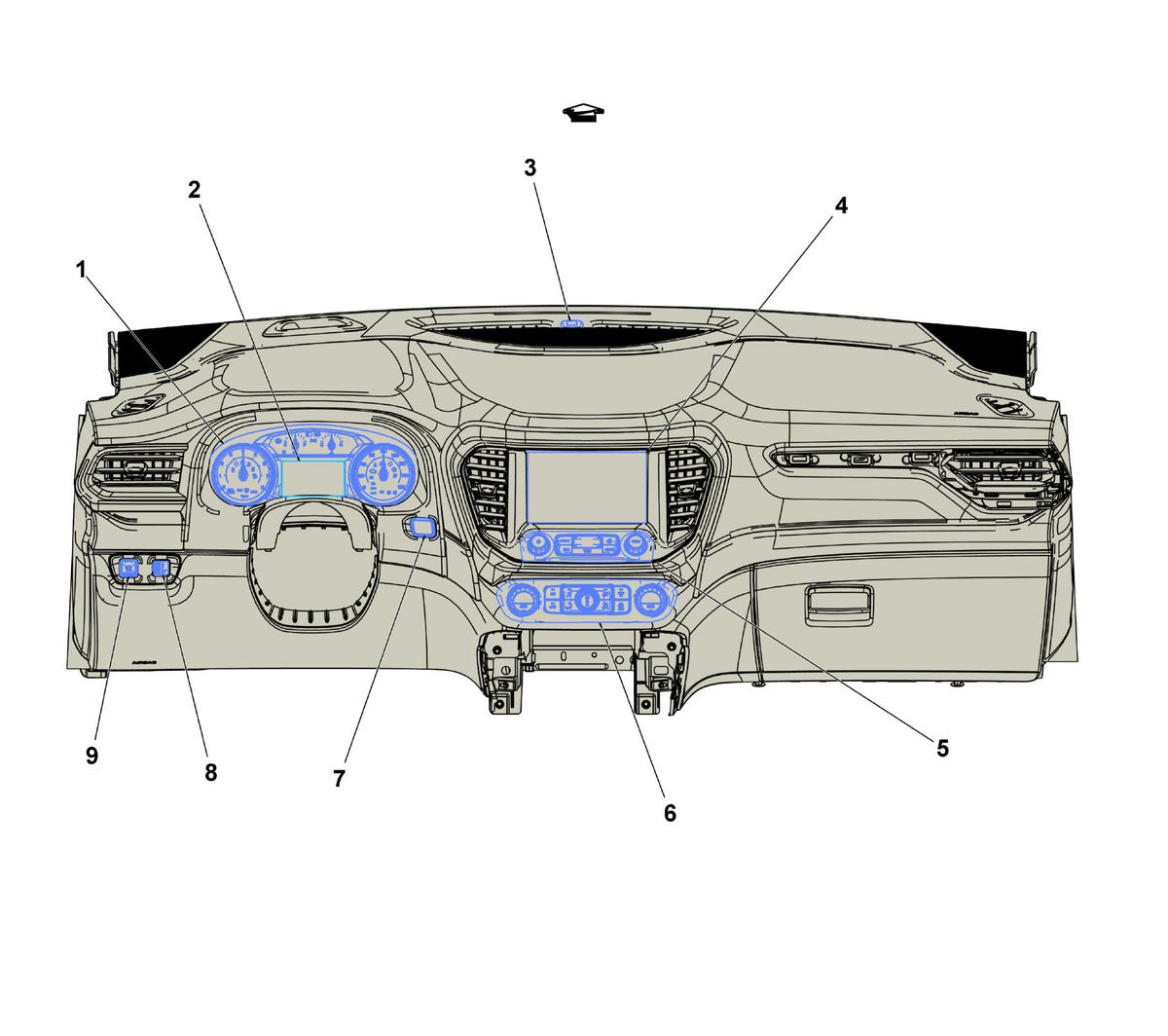

Front of the Instrument Panel Components
Front of the Instrument Panel Components
| Items |
|---|
| 1: P16 Instrument Cluster P16 Instrument Cluster X1 |
| 2: P9 Driver Information Center Display |
| 3: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 4: P17 Info Display Module P17 Info Display Module X1 (IO5/IO6)P17 Info Display Module X1 (IOB)P17 Info Display Module X3 (IO5/IO6)P17 Info Display Module X3 (IOB) |
| 5: A22 Radio Controls (IOB) A22 Radio Controls (IOB) |
| 6: A26 HVAC Controls A26 HVAC Controls |
| 7: S38 Ignition Mode Switch S38 Ignition Mode Switch |
| 8: S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 9: B80 Park Brake Switch (J77) B80 Park Brake Switch (J77) |
