Steering Wheel Components

Steering Wheel Components

Items
1: S33 Horn Switch S33 Horn Switch X1S33 Horn Switch X2
2: E15 Steering Wheel Heater (UVD) E15 Steering Wheel Heater (UVD)
3: K32 Steering Wheel Heating Control Module (UVD) K32 Steering Wheel Heating Control Module (UVD)
4: S70F Steering Wheel Controls Switch - Radio Volume S70F Steering Wheel Controls Switch - Radio Volume
5: S70E Steering Wheel Controls Switch - Radio Presets S70E Steering Wheel Controls Switch - Radio Presets
6: S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
7: S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
8: F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2

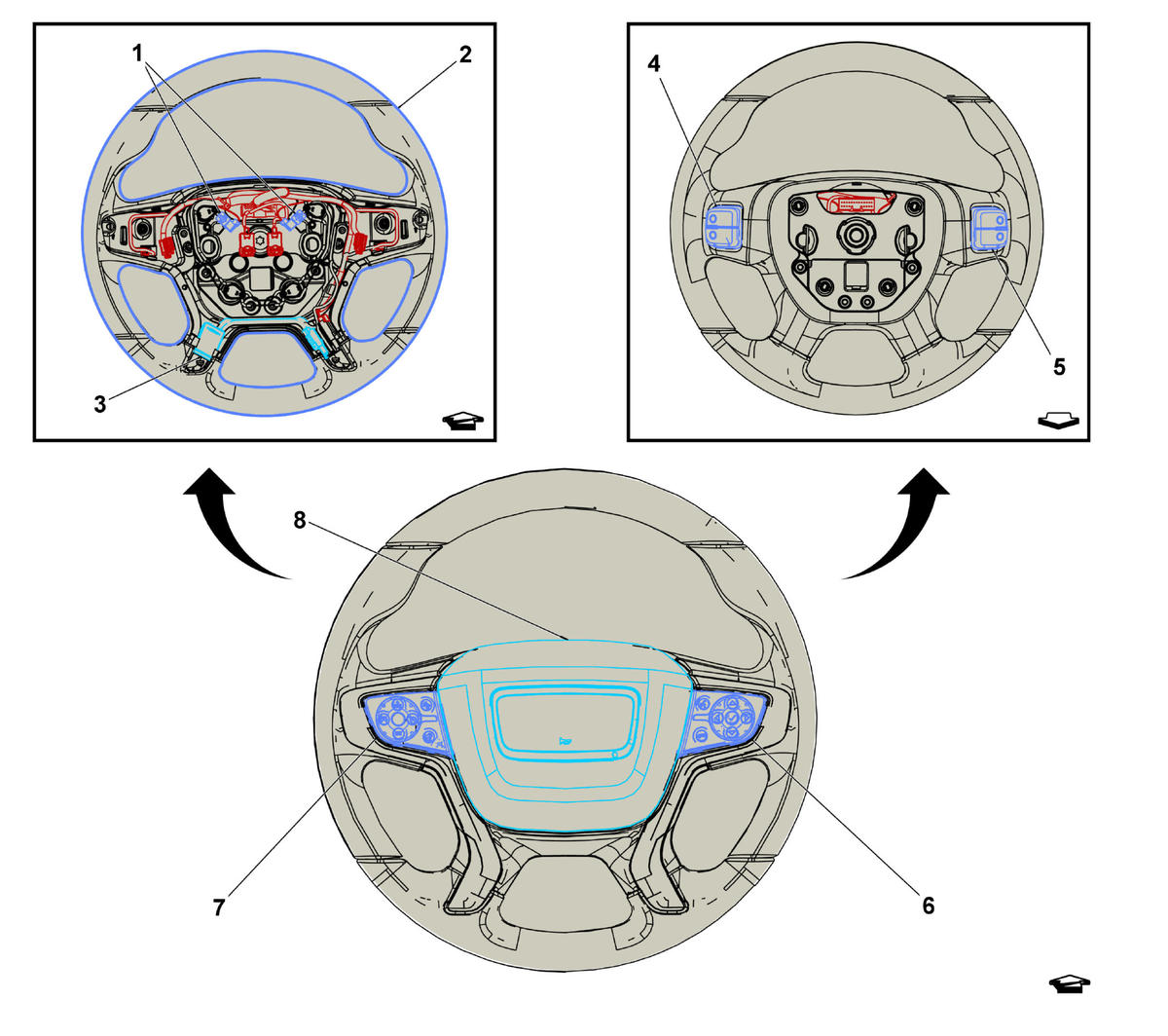

Fig 1: Steering Wheel Components
GM4528534Courtesy of GENERAL MOTORS COMPANY
