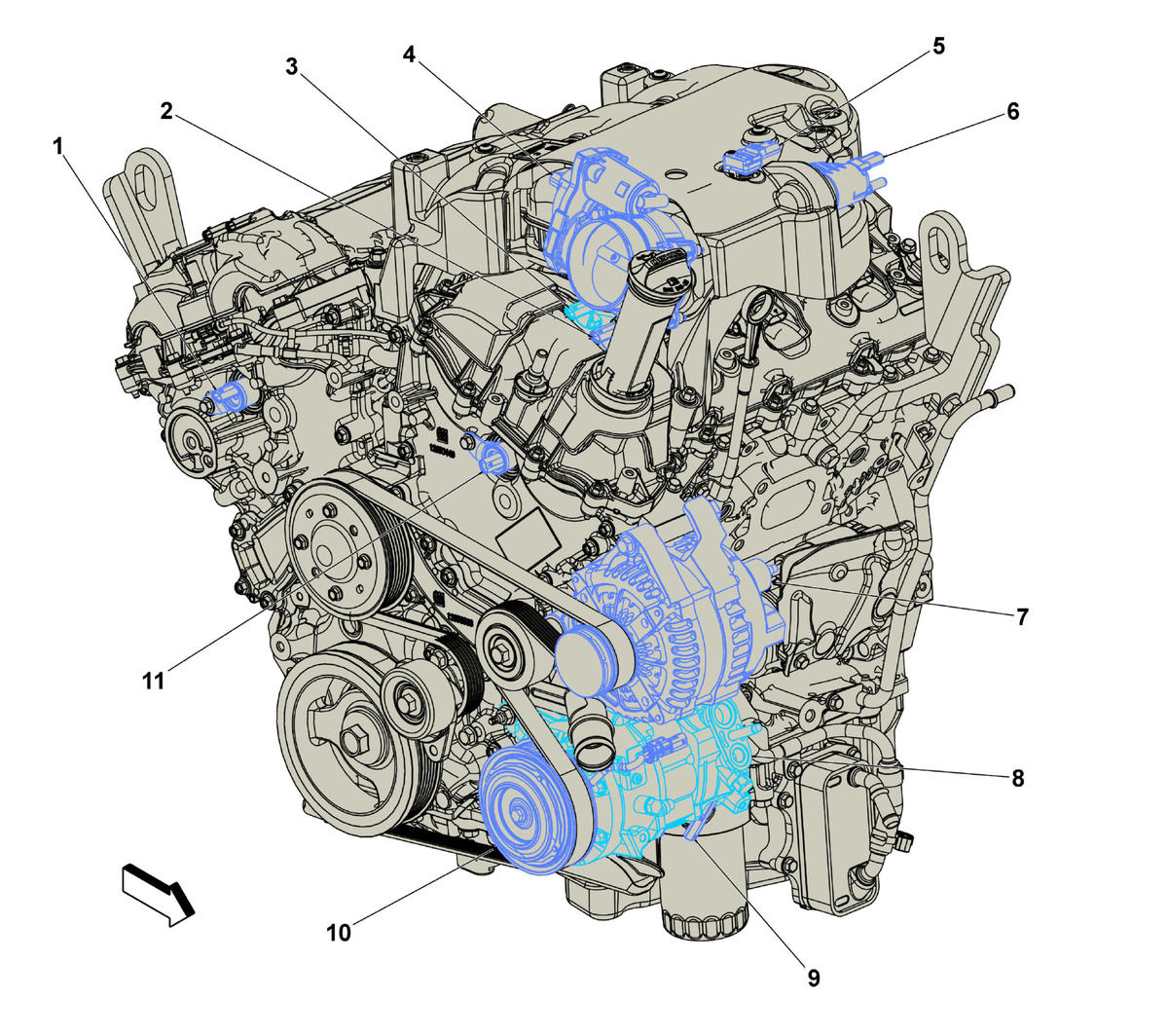

Engine Components - Right Front (LGX)
Engine Components - Right Front (LGX)
| Items |
|---|
| 1: Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) |
| 2: Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) |
| 3: Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) |
| 4: Q38 Throttle Body Q38 Throttle Body |
| 5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX) |
| 6: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LGX/LCV) |
| 7: G13 Generator G13 Generator X1 |
| 8: G1 A/C Compressor |
| 9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 11: Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGX) |
