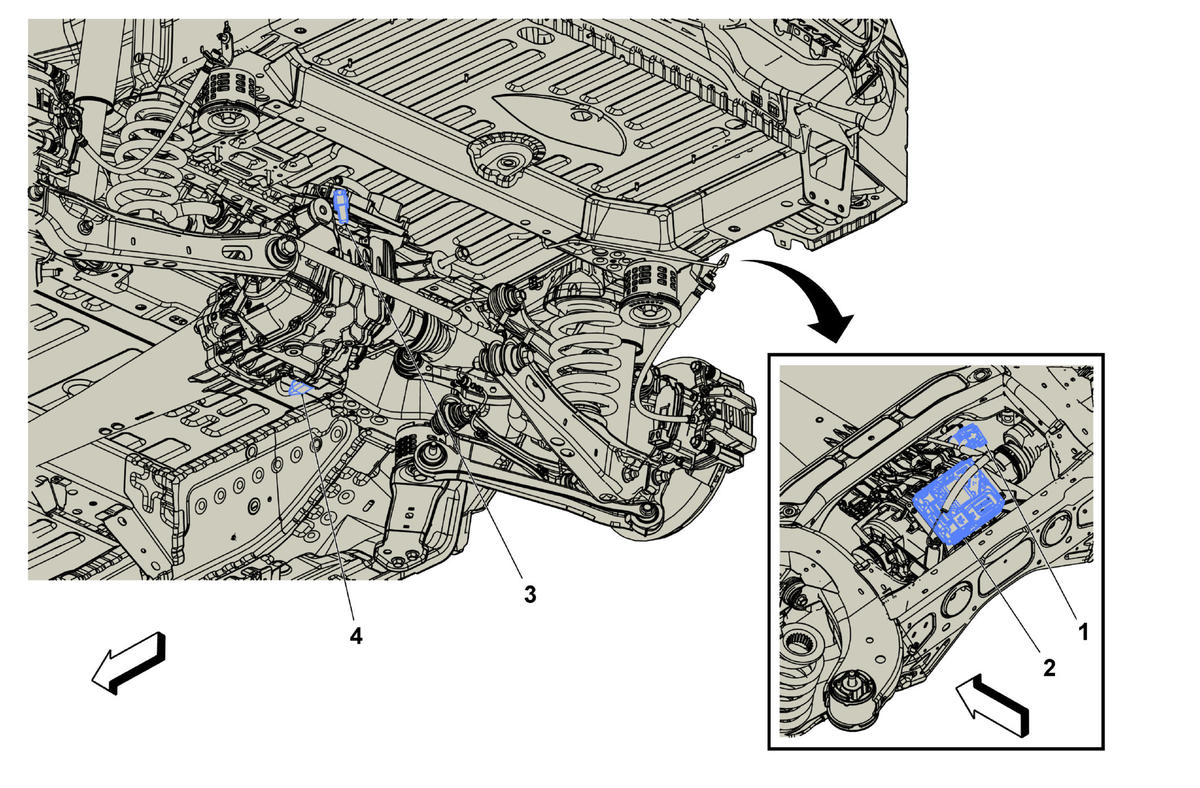

Under Rear of Vehicle Components
Under Rear of Vehicle Components
| Items |
|---|
| 1: M32 Differential Clutch Pump (F48) M32 Differential Clutch Pump (F48) |
| 2: K47 Rear Differential Clutch Control Module (F48) K47 Rear Differential Clutch Control Module X1 (F48) |
| 3: R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus |
| 4: Q49 Rear Differential Clutch Solenoid Valve (G99) Q49 Rear Differential Clutch Solenoid Valve (G99) |
