Camshaft Position Sensor Replacement - Intake

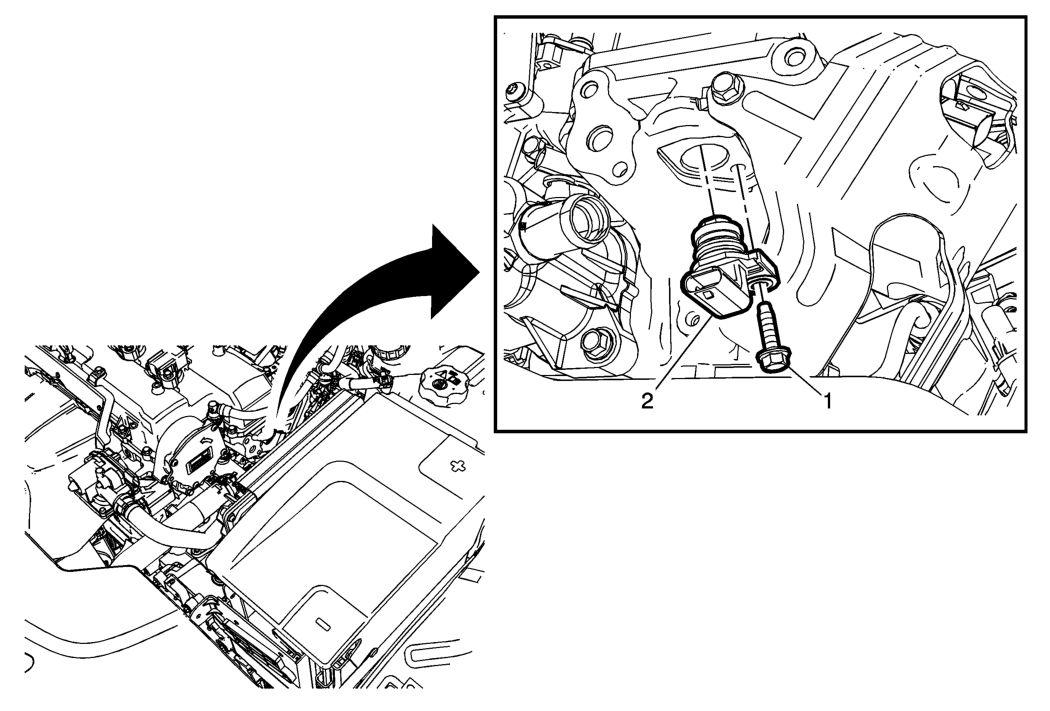

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement Remove Battery Tray. Refer to Battery Tray Replacement
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical wiring harness connector from the camshaft position sensor. Install a NEW seal if not replacing the sensor.

Callout

Component Name

Preliminary Procedures

Camshaft Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Sensor

Procedure

Disconnect the electrical wiring harness connector from the camshaft position sensor.
Install a NEW seal if not replacing the sensor.
