Installation Procedure

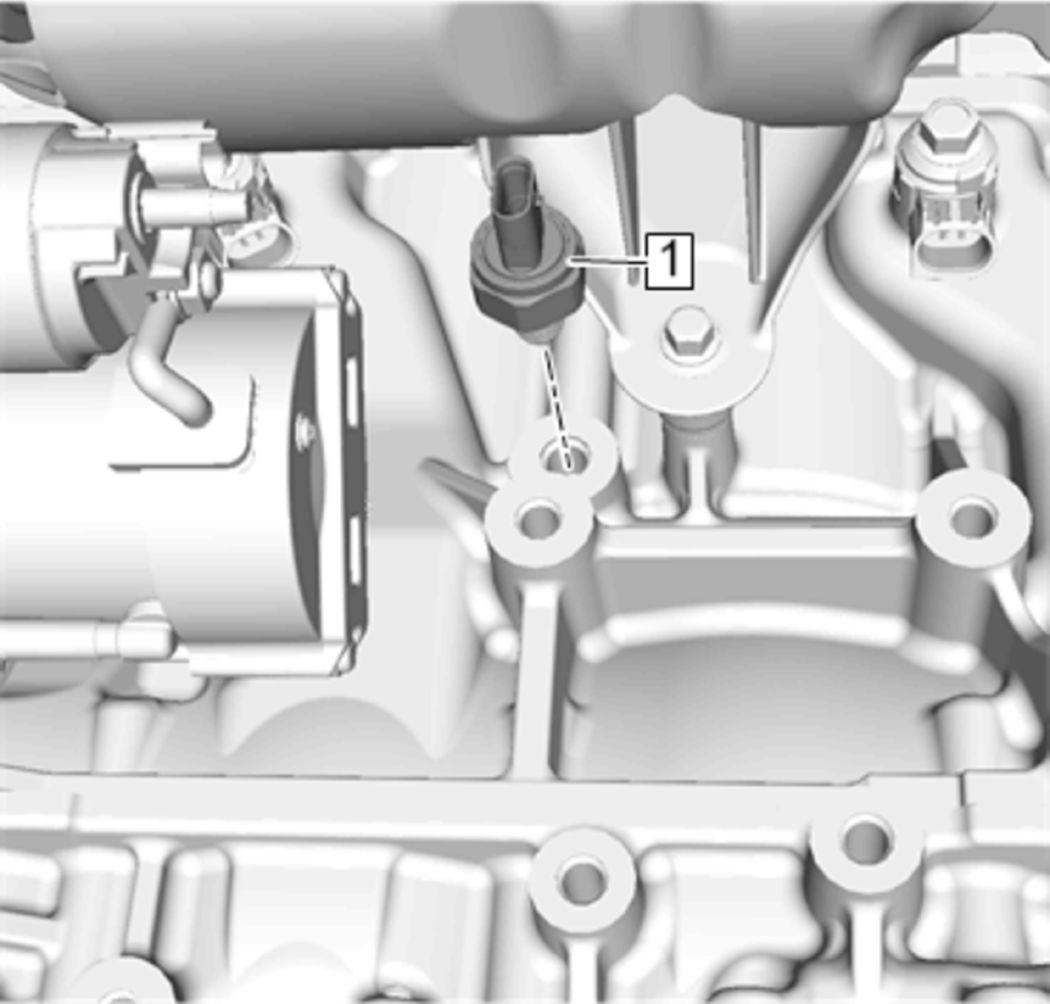

    Fig 1: Engine Oil Pressure Sensor
    GM4375489Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

  1. Install and tighten Engine Oil Pressure Sensor (1) to 35 N.m (26 lb ft)

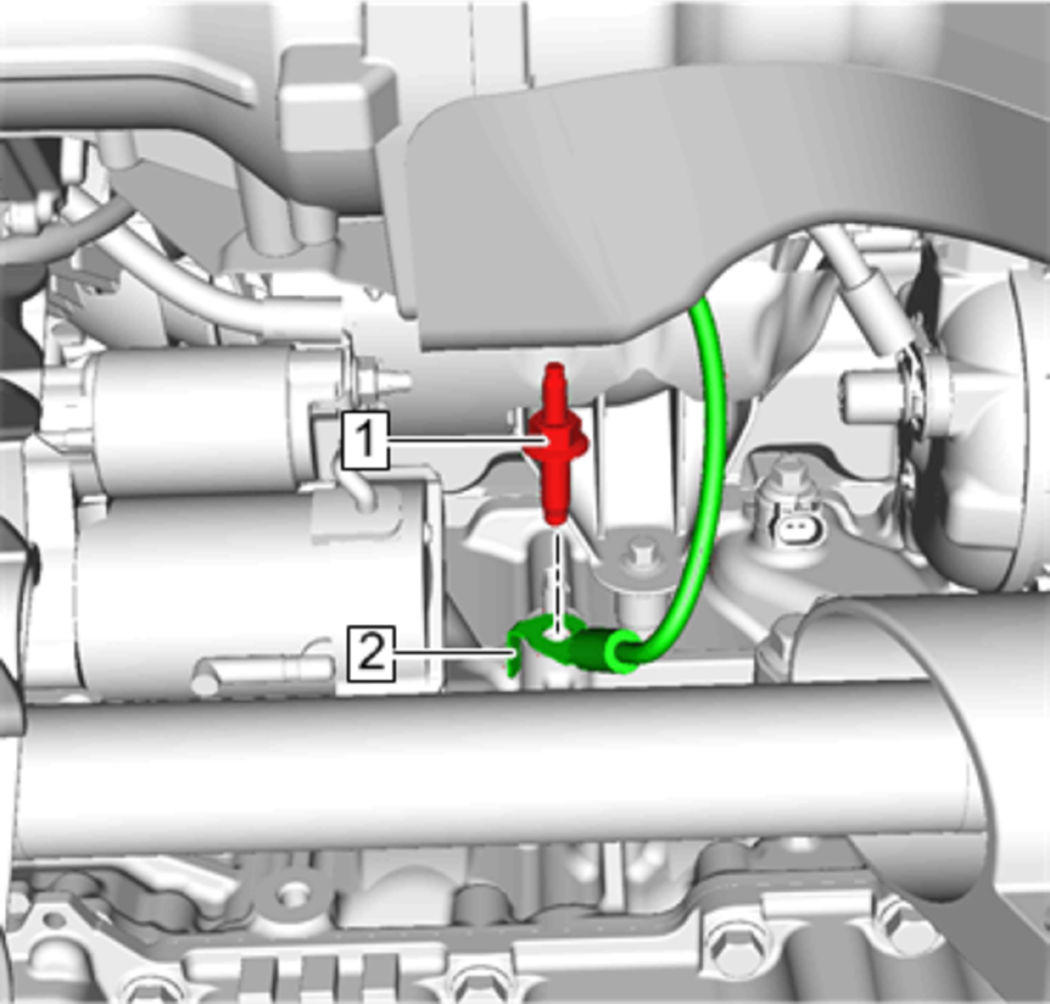

    2. Fig 2: Battery Negative Cable And Ground Stud
    GM4375606Courtesy of GENERAL MOTORS COMPANY
  2. Reposition Battery Cable (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Battery Negative Cable Ground Stud (1) to 40 N.m (30 lb ft)

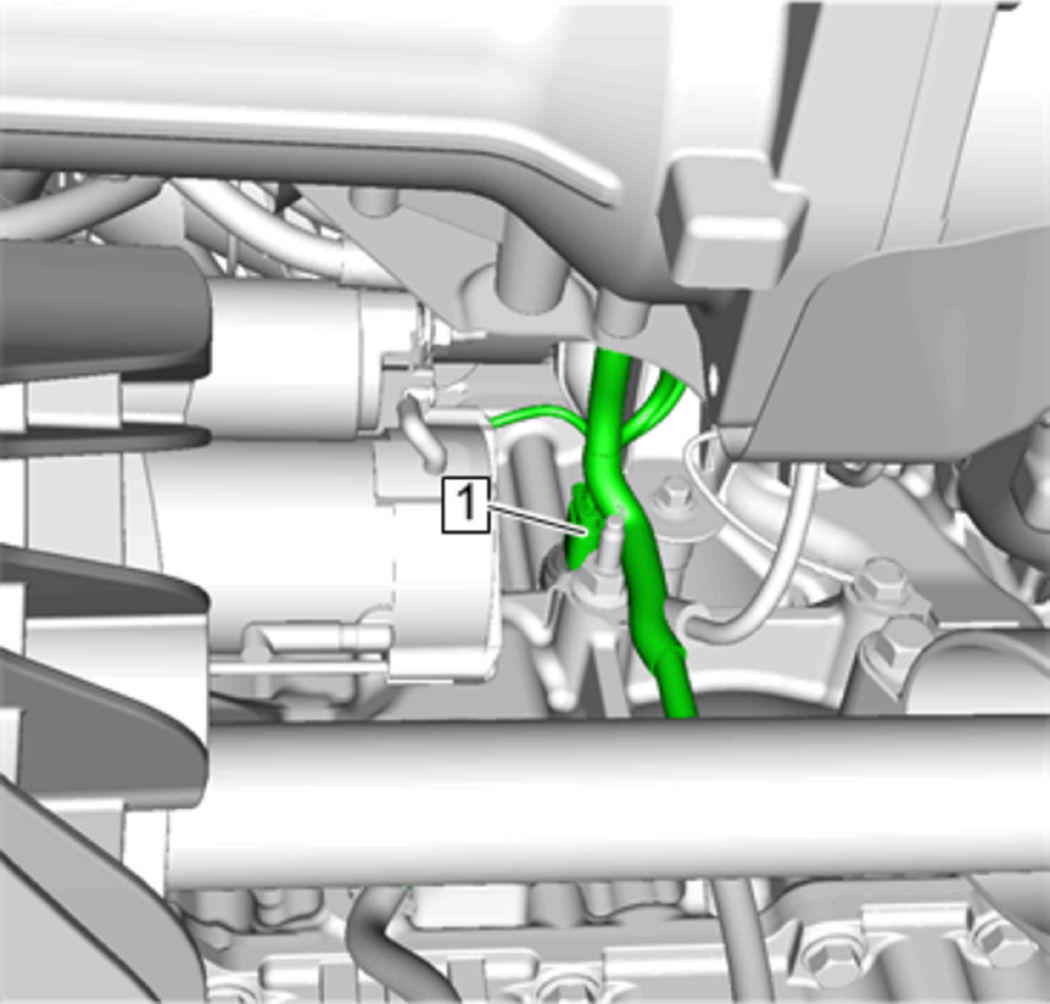

    4. Fig 3: Oil Pressure Sensor Electrical Connector
    GM4375295Courtesy of GENERAL MOTORS COMPANY
  4. Connect Electrical Connector (1)
  5. Install the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
  6. Lower the vehicle.
