Removal Procedure

  1. Remove Throttle Body Assembly. Refer to Throttle Body Assembly Replacement
  2. Remove Heater Outlet Pipe. Refer to Heater Outlet Pipe Replacement (LCV)

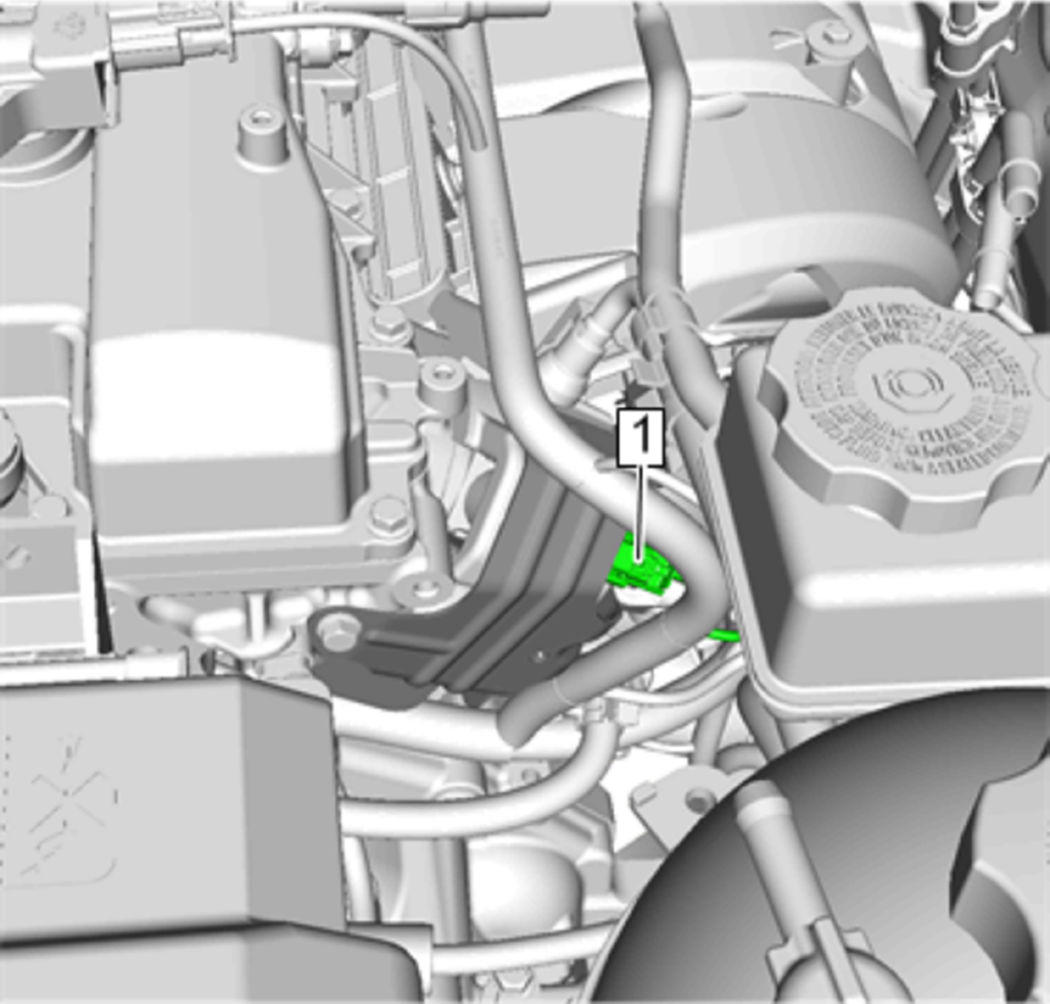

    3. Fig 1: Electrical Connector
    GM4376536Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect Electrical Connector (1)

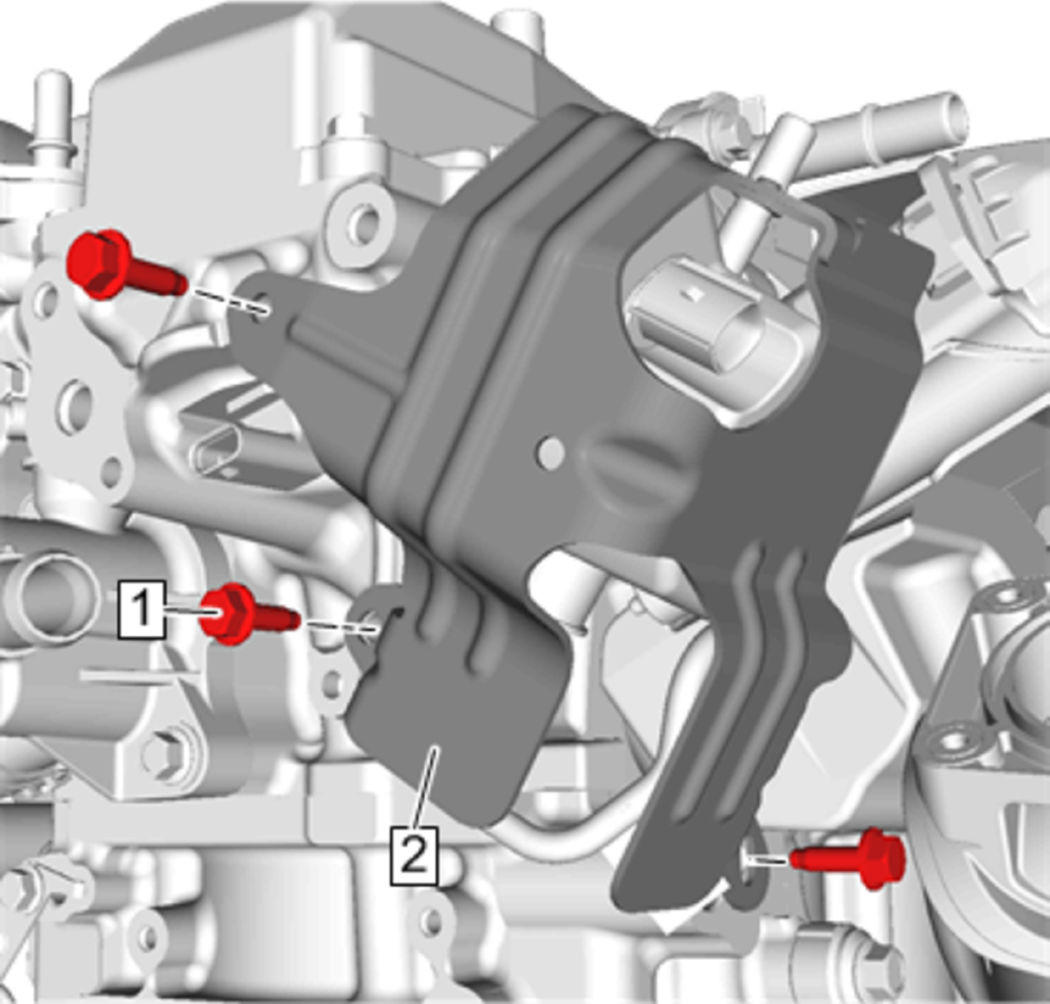

    4. Fig 2: Fuel Pump Cover And Bolts
    GM4376576Courtesy of GENERAL MOTORS COMPANY
  4. Remove Fuel Pump Shield Bolts (1) (Qty: 3)
  5. Remove Fuel Pump Cover (2)
