Fuel Pump Power Control Module Replacement (AWD)

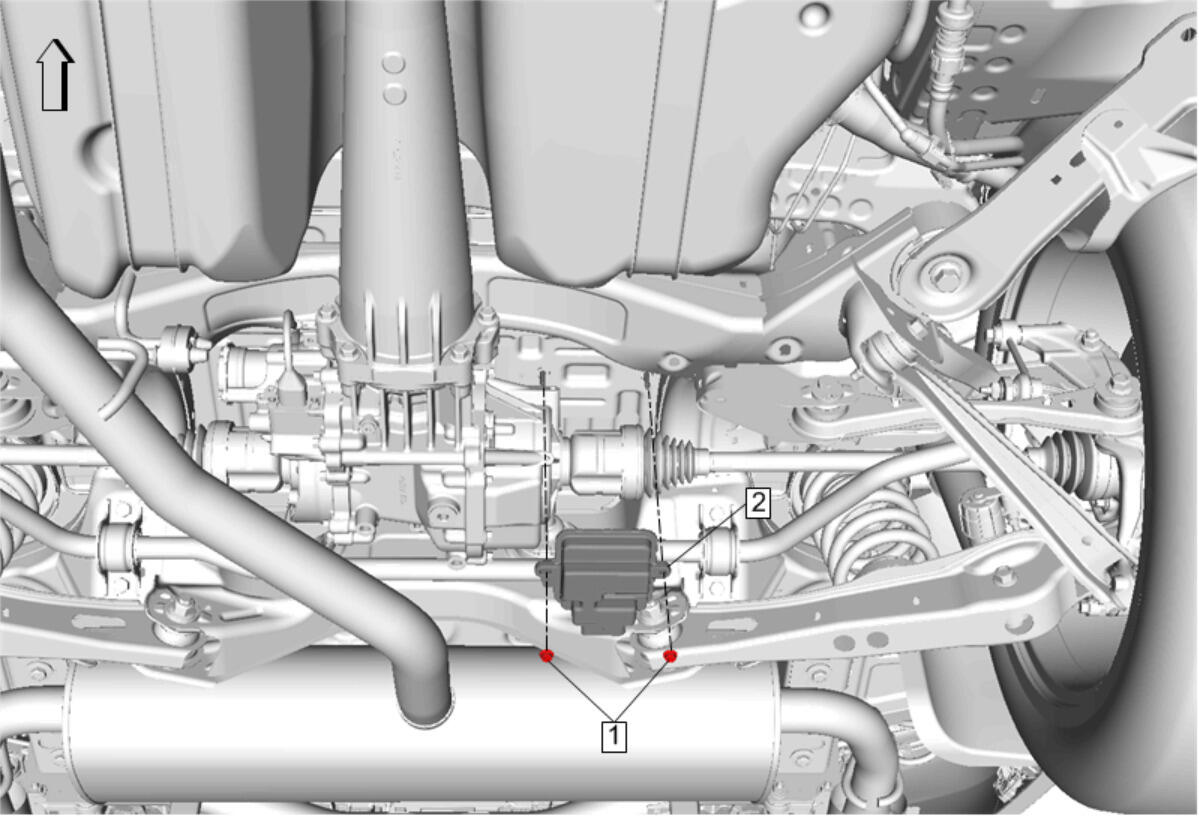

Fig 1: Fuel Pump Power Control Module (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Fuel Pump Power Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Fuel Pump Power Control Module Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure
