Installation Procedure

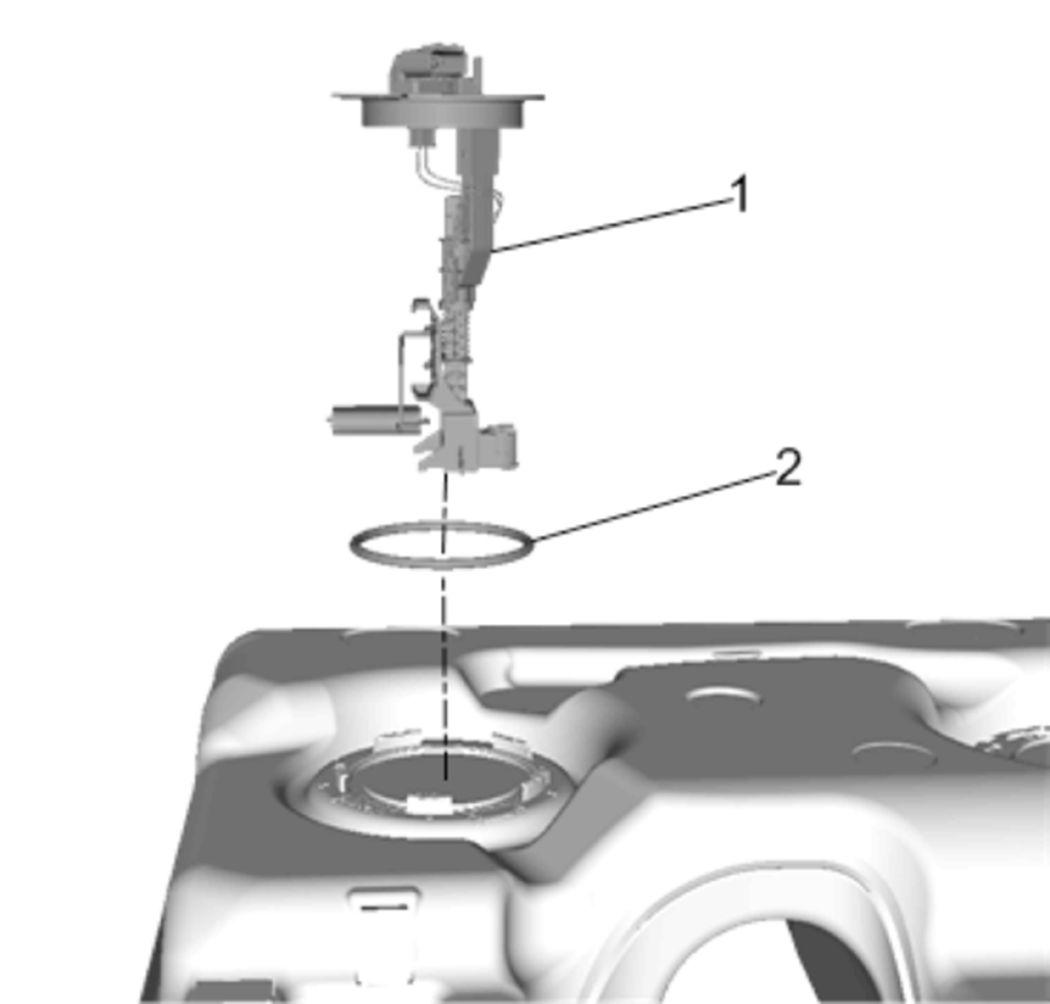

    Fig 1: Fuel Sender And Fuel Pump Seal
    GM4296140Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Fuel Pump Seal (2).
  2. Install Fuel Sender (1)

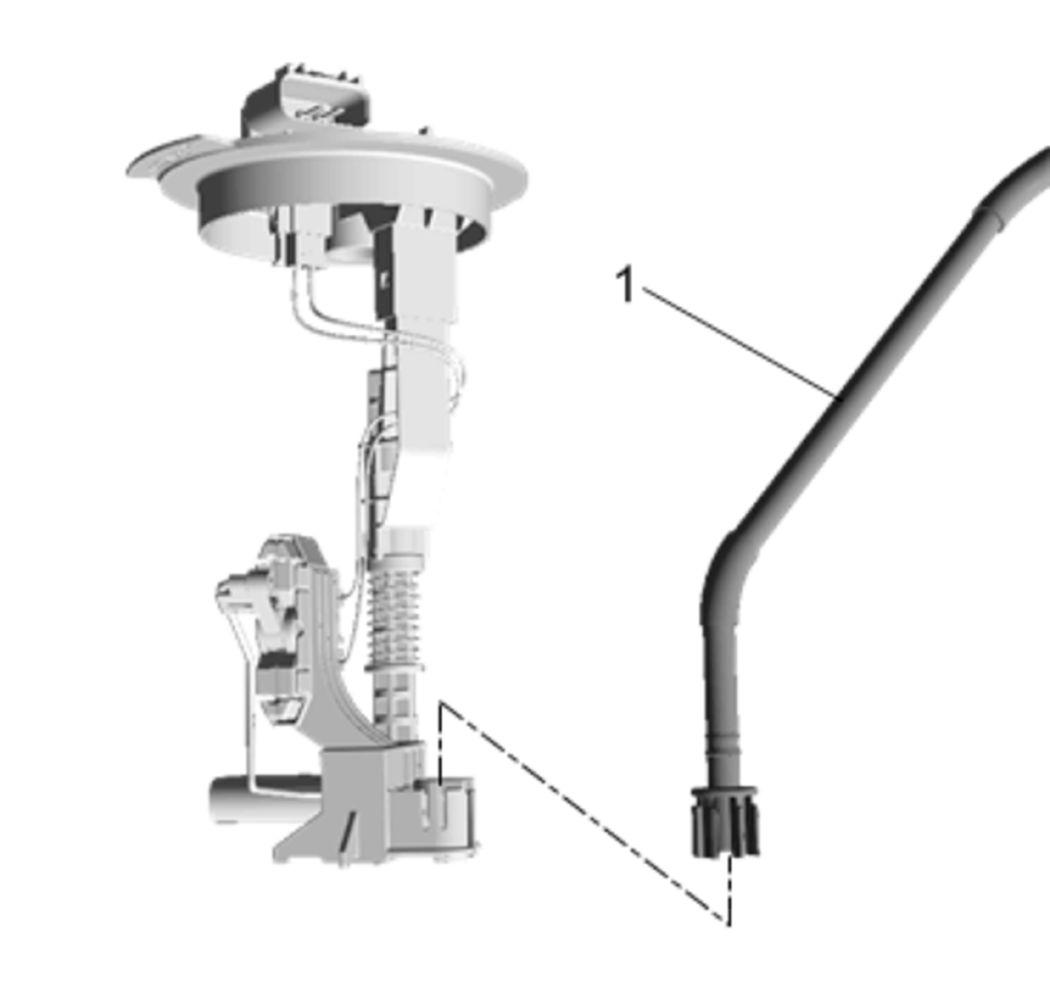

    3. Fig 2: Transfer Hose
    GM4296142Courtesy of GENERAL MOTORS COMPANY
  3. Connect Transfer Hose (1). Refer to Plastic Collar Quick Connect Fitting Service

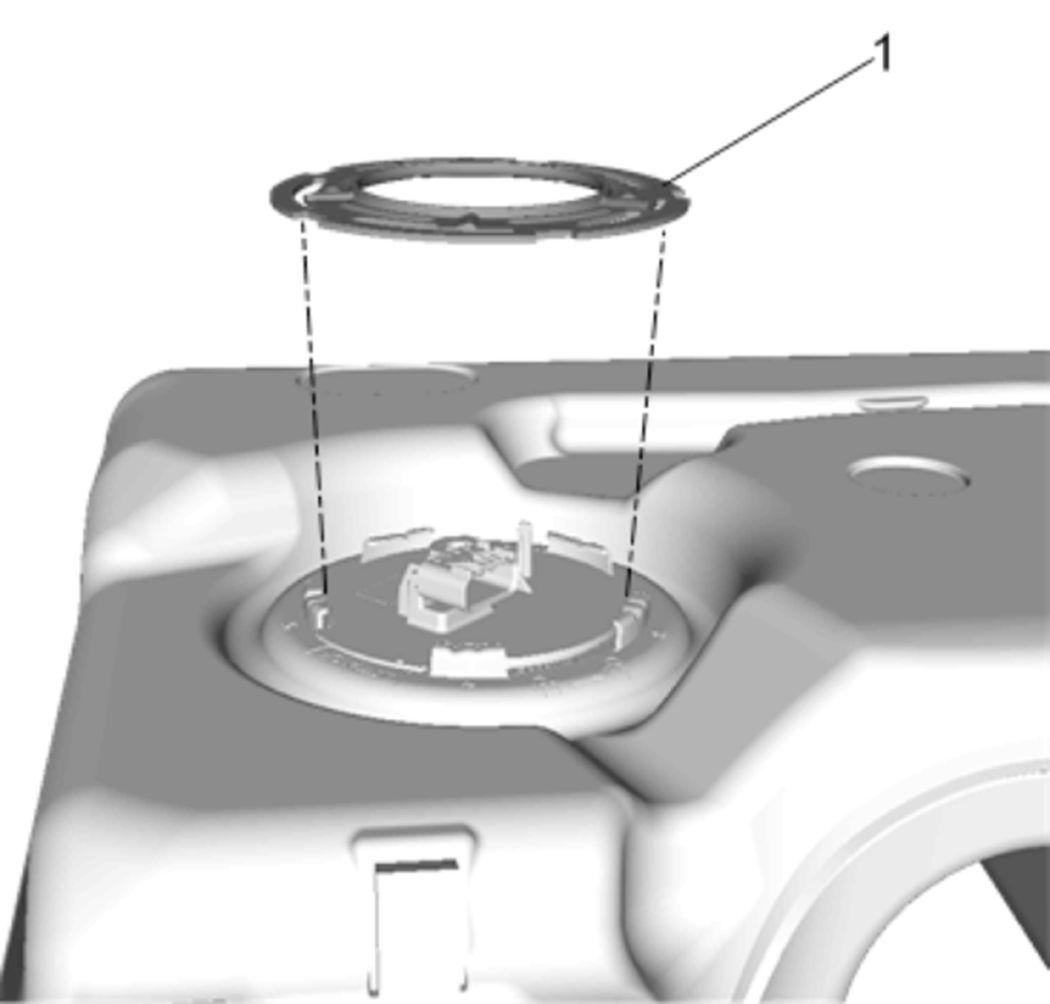

    4. Fig 3: Fuel Pump Lock Ring
    GM4296139Courtesy of GENERAL MOTORS COMPANY
  4. Use the CH 45722  wrench by turning clockwise and install the lock ring (1).
  5. Connect the electrical connector.
  6. Install Fuel Tank. Refer to Fuel Tank Replacement (AWD)
