Fuel Tank Front Shield Replacement (AWD)

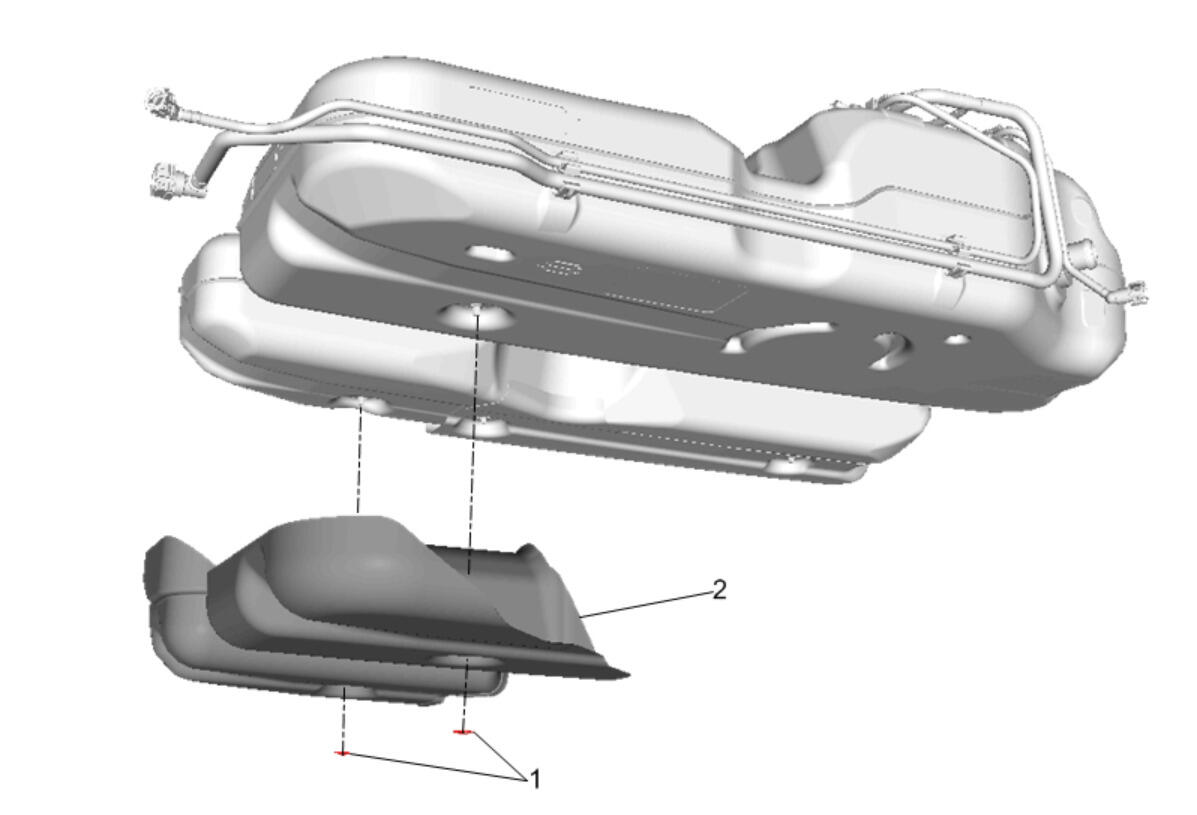

Fig 1: Fuel Tank Front Shield (AWD)
GM4294854Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Fuel Tank. Refer to Fuel Tank Replacement (AWD)
1 Fuel Tank Heat Shield Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Front Shield
