Fuel Tank Pressure Sensor Replacement (FWD)

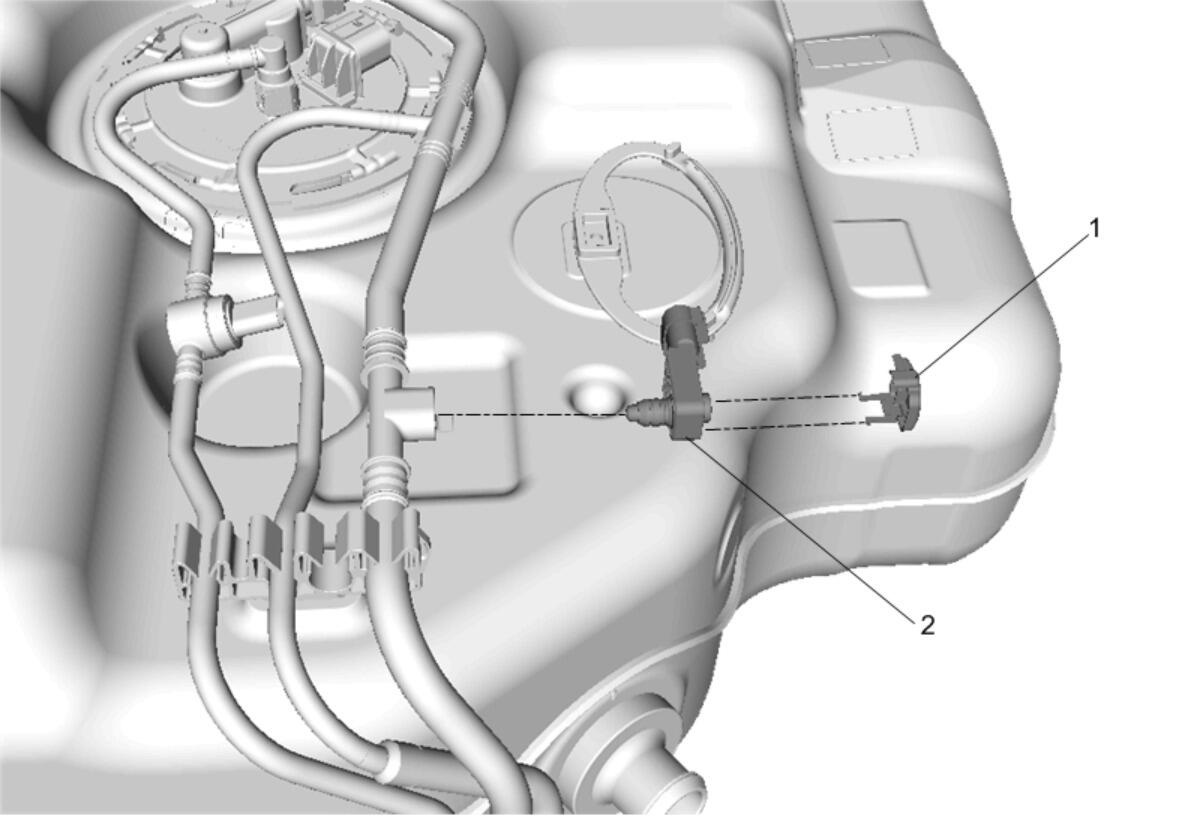

Fig 1: Fuel Tank Pressure Sensor (FWD)
GM4292593Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Remove Fuel Tank. Refer to Fuel Tank Replacement (FWD)
1 Fuel Tank Pressure Sensor Cover
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
