Knock Sensor Replacement (Position 1)

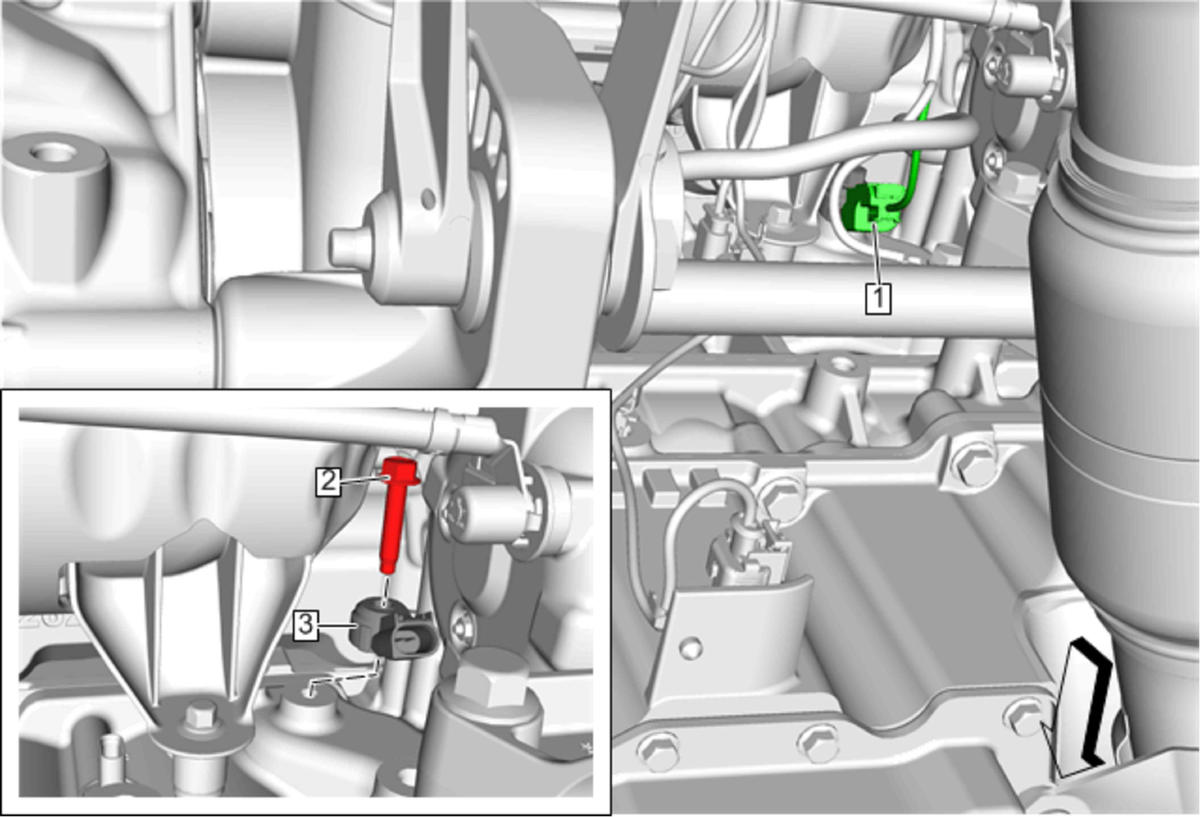

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle |
|
| 1 | Electrical Connector Procedure Disconnect the electrical connector. |
| 2 | Knock Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Knock Sensor |
