Knock Sensor Replacement (Position 2)

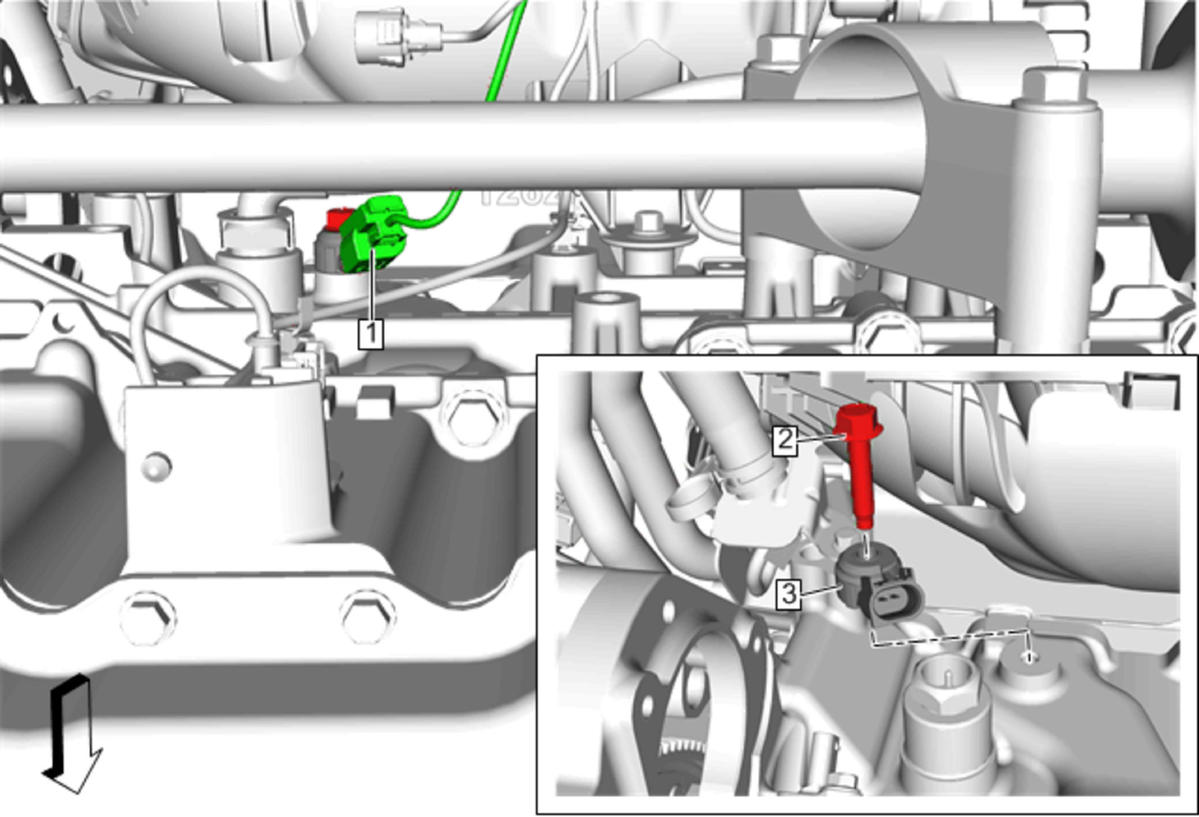

Fig 1: Knock Sensor (Position 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove starter motor. Refer to Starter Replacement (LCV - AWD)Starter Replacement (LCV - FWD)
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Knock Sensor
