Manifold Absolute Pressure Sensor Replacement

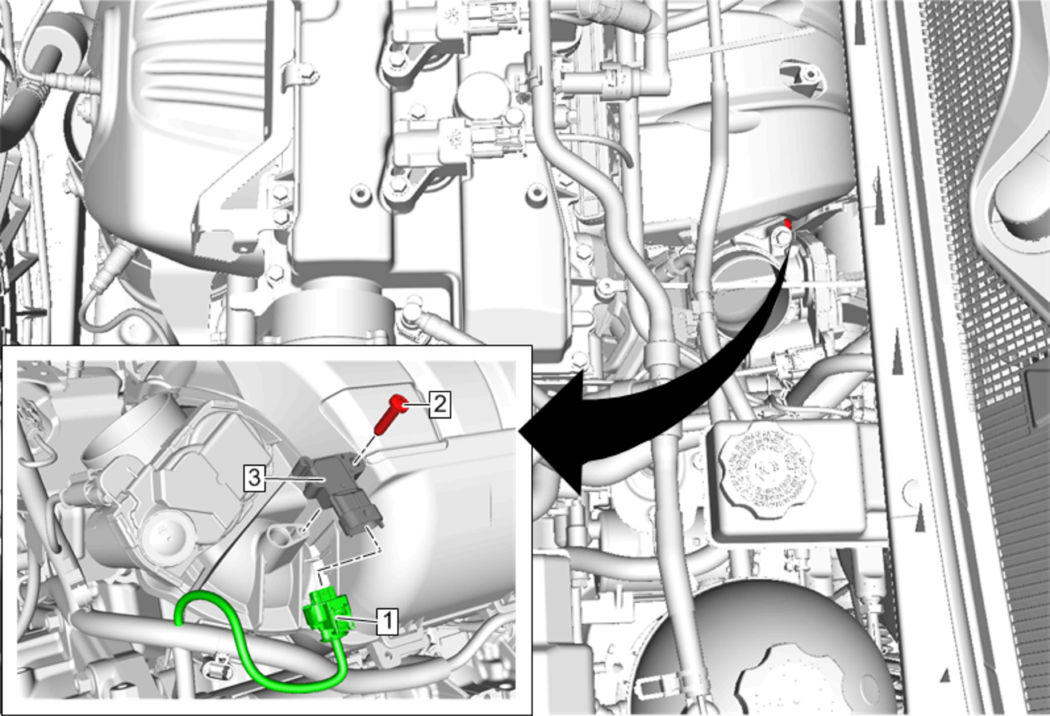

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
1	Electrical Connector
2	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Manifold Absolute Pressure Sensor NOTE: Inspect the manifold absolute pressure (MAP) sensor O-ring seal and replace as necessary.
