Forward Collision Alert Display Replacement
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

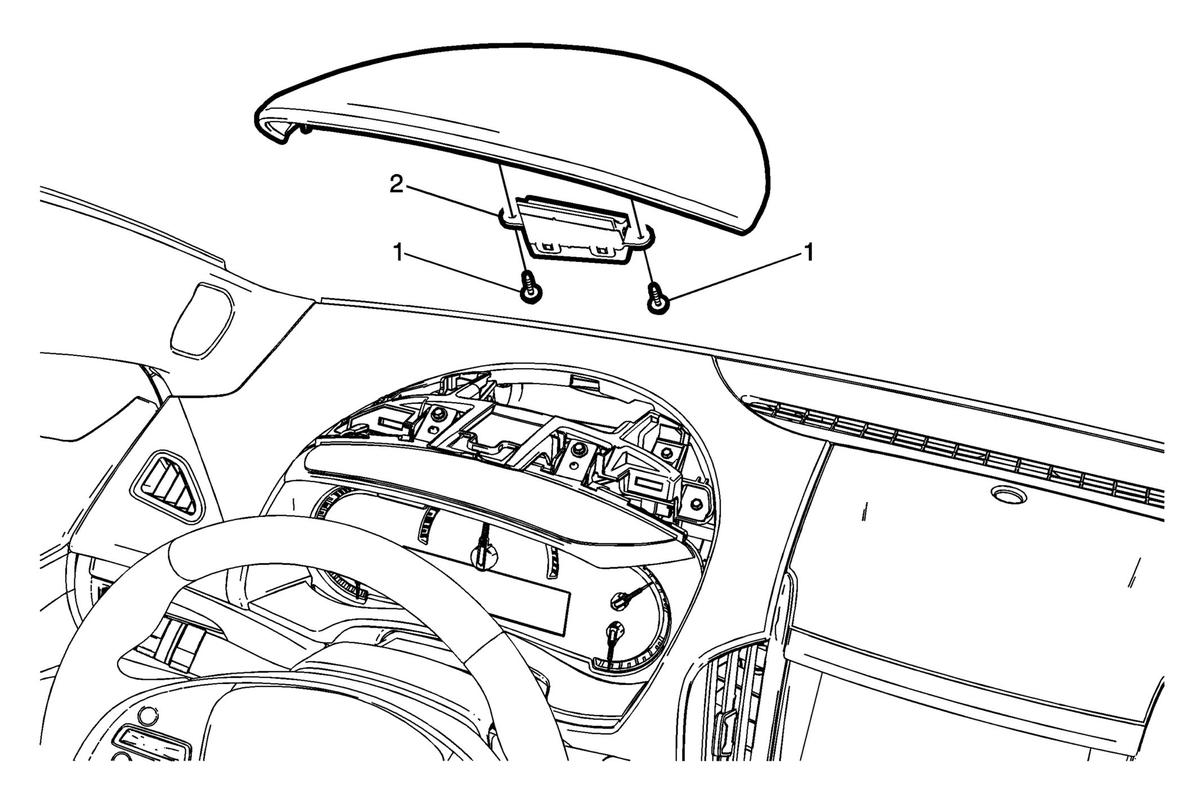

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement (With UV6)Instrument Panel Instrument Cluster Hood Replacement (Without UV6)Instrument Panel Instrument Cluster Hood Replacement (With UEU) . |
|
| 1 | Forward Collision Alert Display Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Forward Collision Alert Display |
