Parking Assist Control Module Replacement (Coupe)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

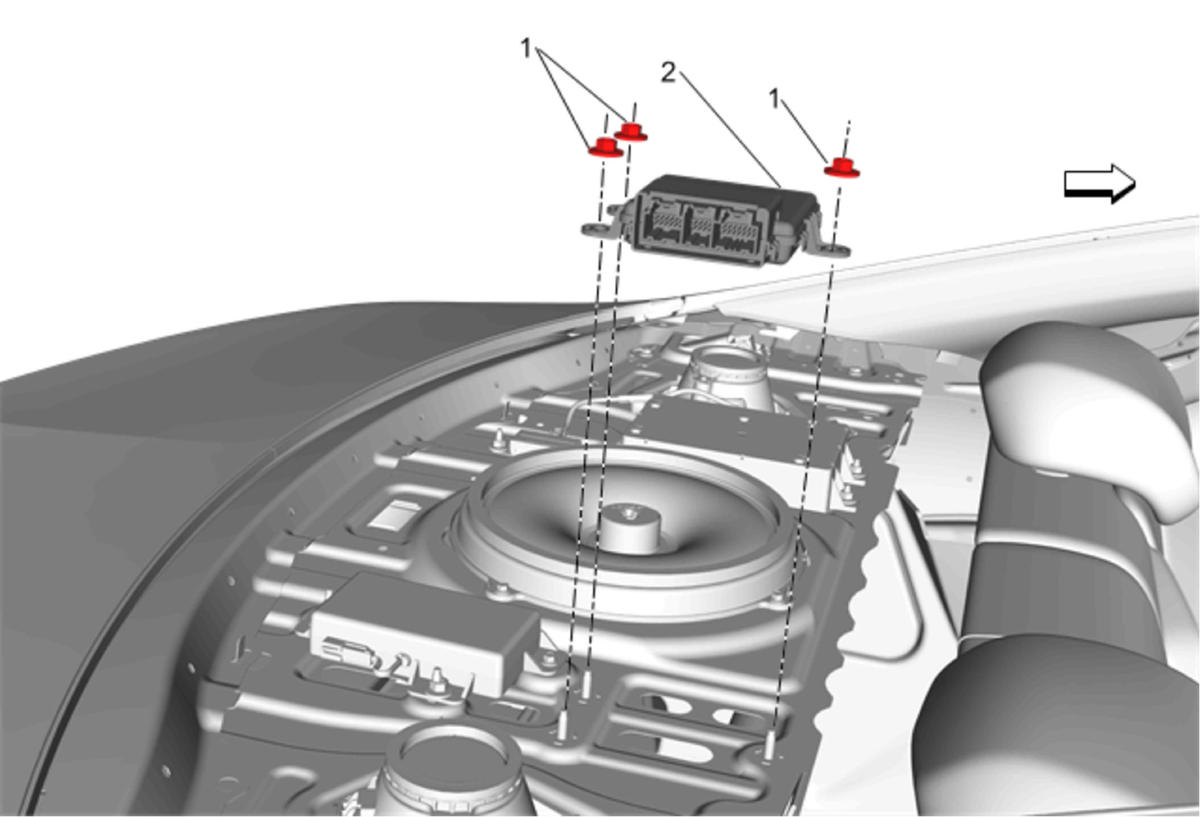

Fig 1: Parking Assist Control Module (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Coupe) .
1	Rear Object Alarm Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Coupe) .

Rear Object Alarm Control Module Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Rear Object Alarm Control Module

Procedure

Disconnect the electrical connectors.
For programming and set up, refer to Control Module References .
