Rearview Driver Information Camera Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

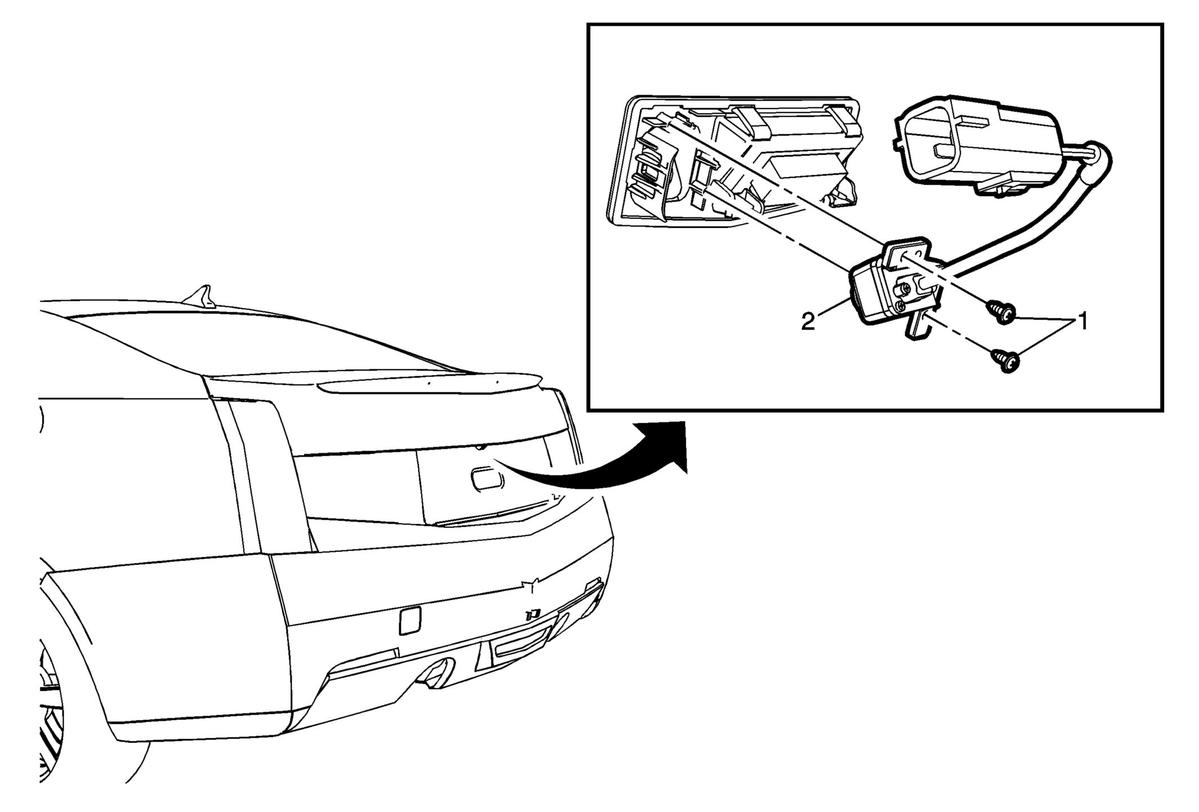

Fig 1: Rearview Driver Information Camera
GM2844340Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear closure fixed handle applique. Refer to Rear Closure Fixed Handle Applique Replacement .
1 Rearview Camera Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .

2 Rearview Camera
Procedure
Disconnect the electrical connector.
