Vehicle Performance Camera Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

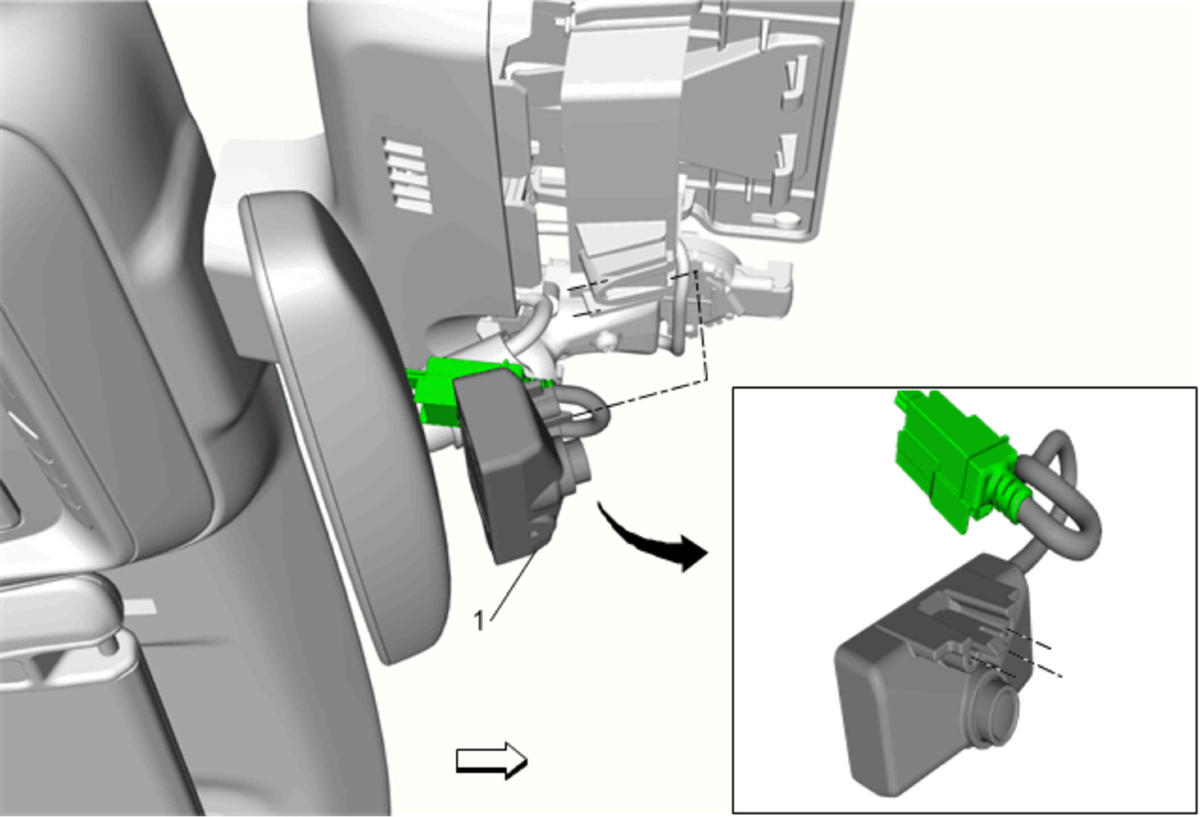

Fig 1: Vehicle Performance Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (Without UEU, UFL)
1	Vehicle Performance Camera Procedure Gently depress center tab on camera to release it from the bracket and slide the camera up off the bracket. Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (With UEU, UFL)Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement (Without UEU, UFL)

Vehicle Performance Camera

Procedure

Gently depress center tab on camera to release it from the bracket and slide the camera up off the bracket.
Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
