Human Machine Interface Control Module Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

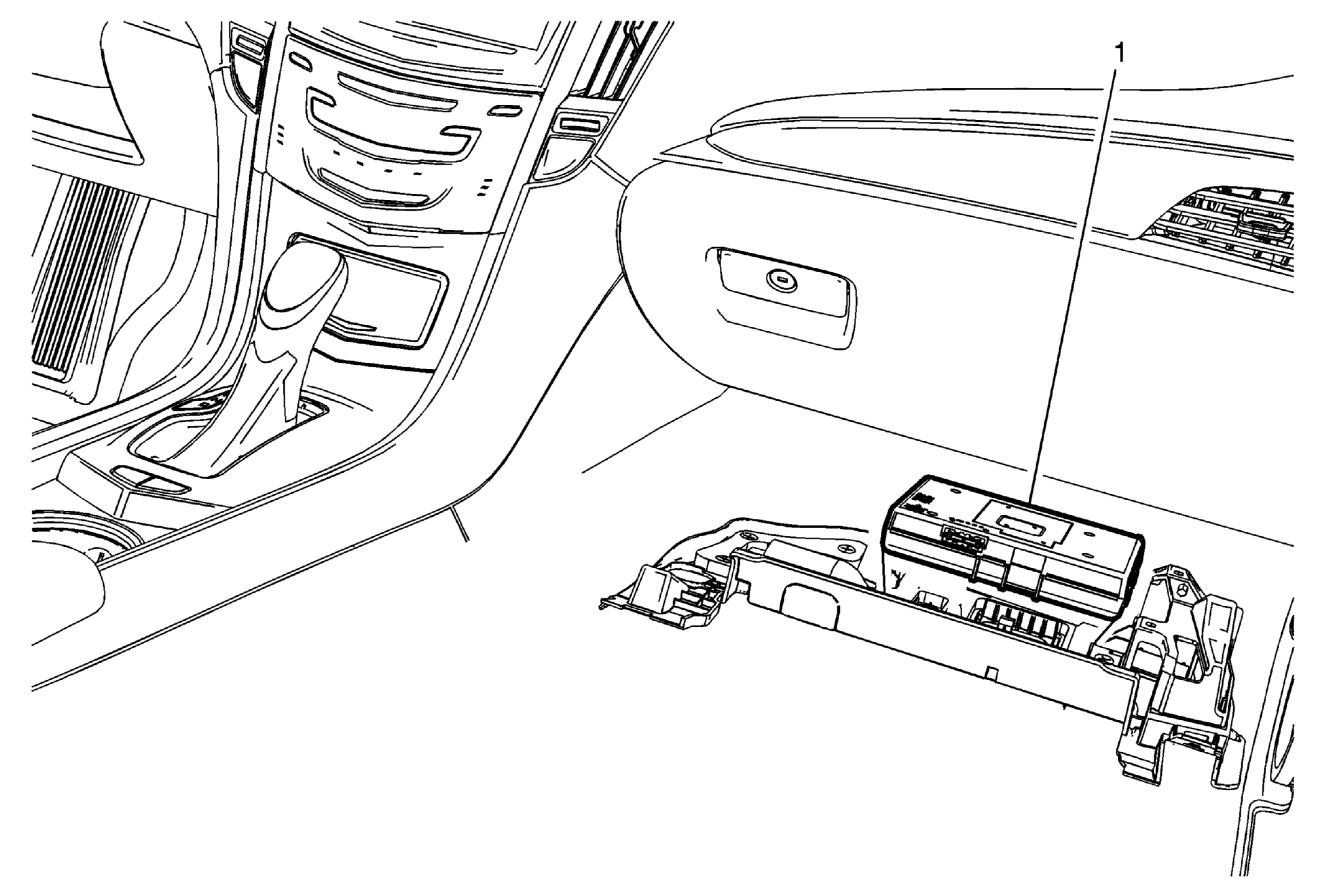

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Unclip the module from the insulator panel. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side)Instrument Panel Lower Trim Panel Insulator Replacement (Right Side) .

Human Machine Interface Control Module

Procedure

Disconnect the electrical connections.
Unclip the module from the insulator panel.
Refer to Control Module References for programming and setup information.
