Peripheral Human Machine Interface Control Module Replacement (Sedan)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

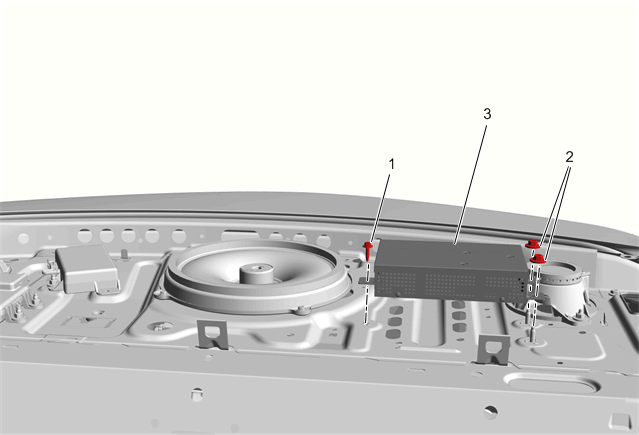

Fig 1: Peripheral Human Machine Interface Control Module (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement (Sedan)
1	Peripheral Human Machine Interface Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Peripheral Human Machine Interface Control Module Bracket Nut Tighten 6 N.m (53 lb in)
3	Peripheral Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures, if required.
