Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

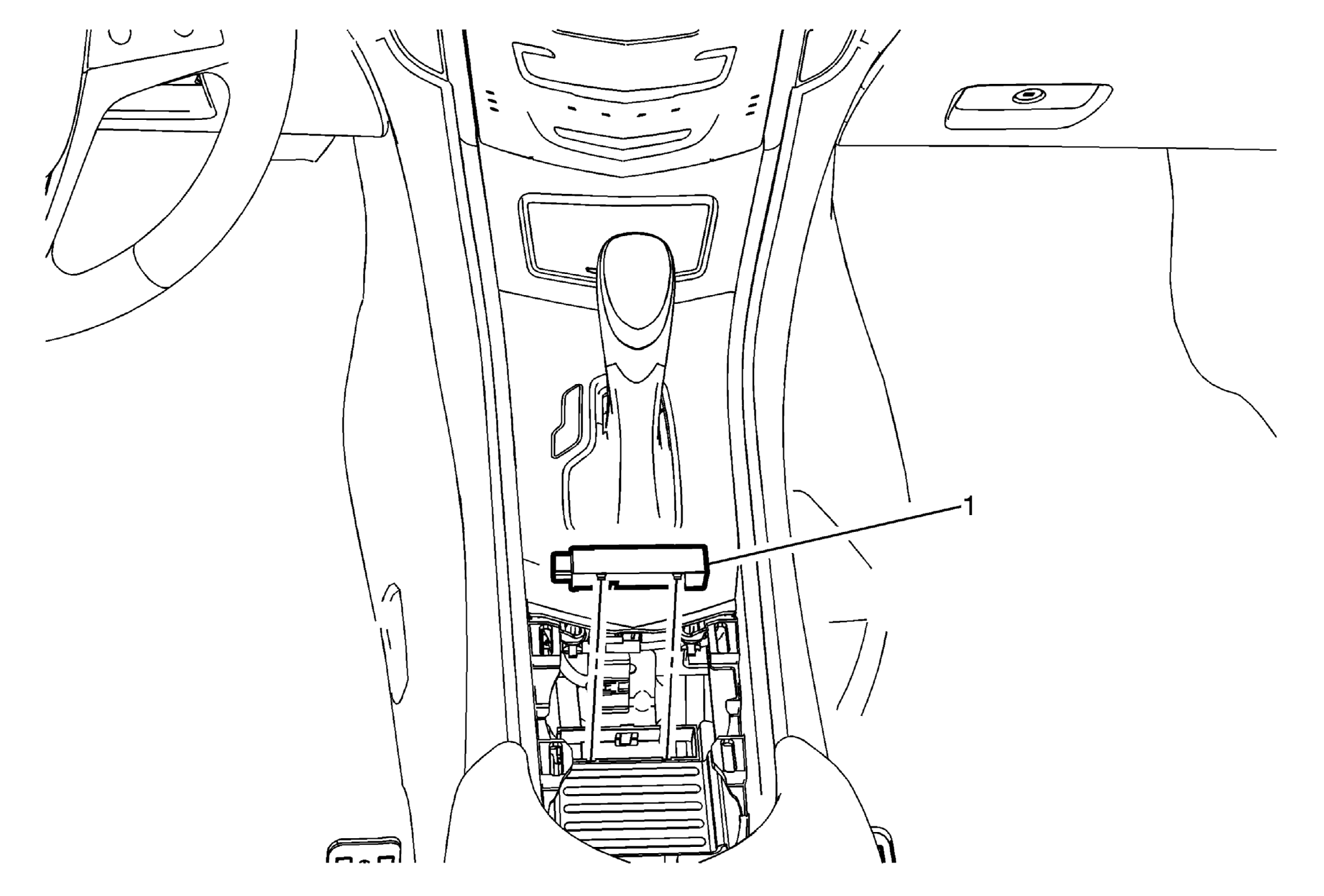

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console cup holder plate. Refer to Front Floor Console Cup Holder Plate Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front floor console cup holder plate. Refer to Front Floor Console Cup Holder Plate Replacement .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connector.
Unsnap antenna from the bracket.
