Remote Control Door Lock Receiver Antenna Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

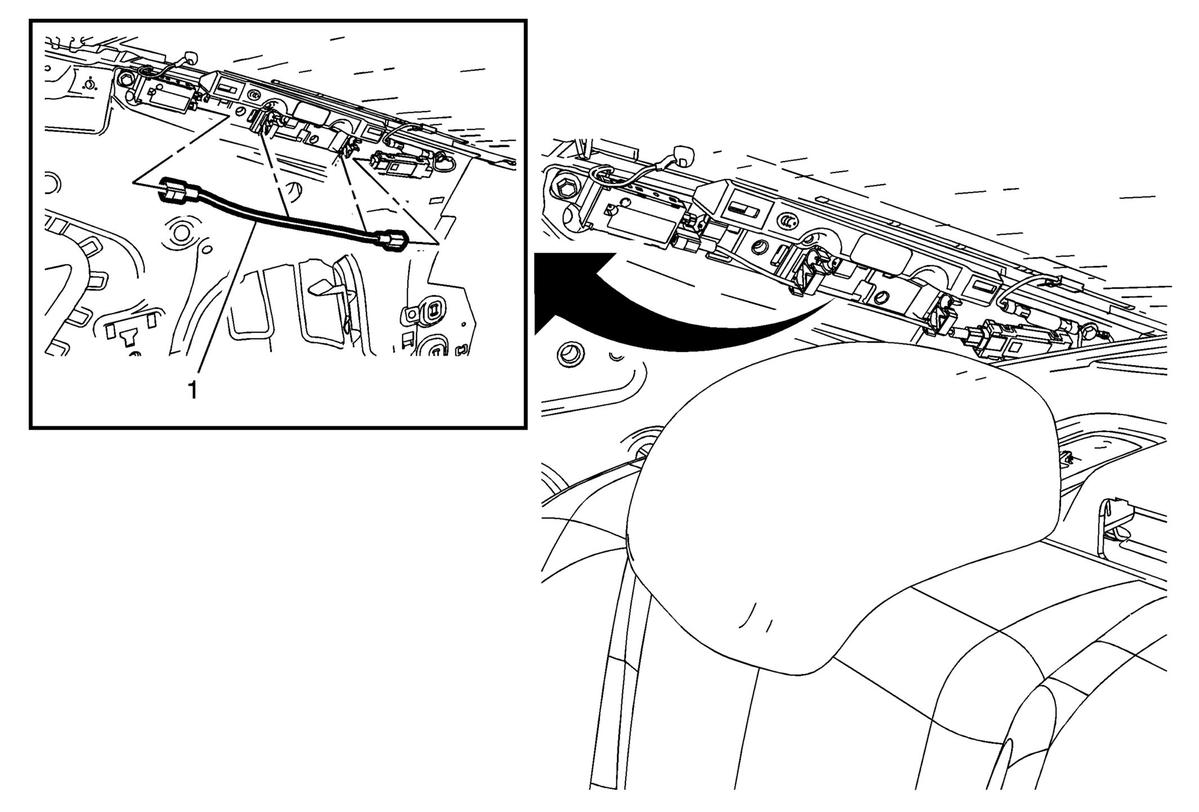

Fig 1: Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the radio antenna amplifier and the remote control door lock receiver. Remove antenna from the trim panel bracket clips.

Callout

Component Name

Preliminary Procedure
Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the radio antenna amplifier and the remote control door lock receiver.
Remove antenna from the trim panel bracket clips.
