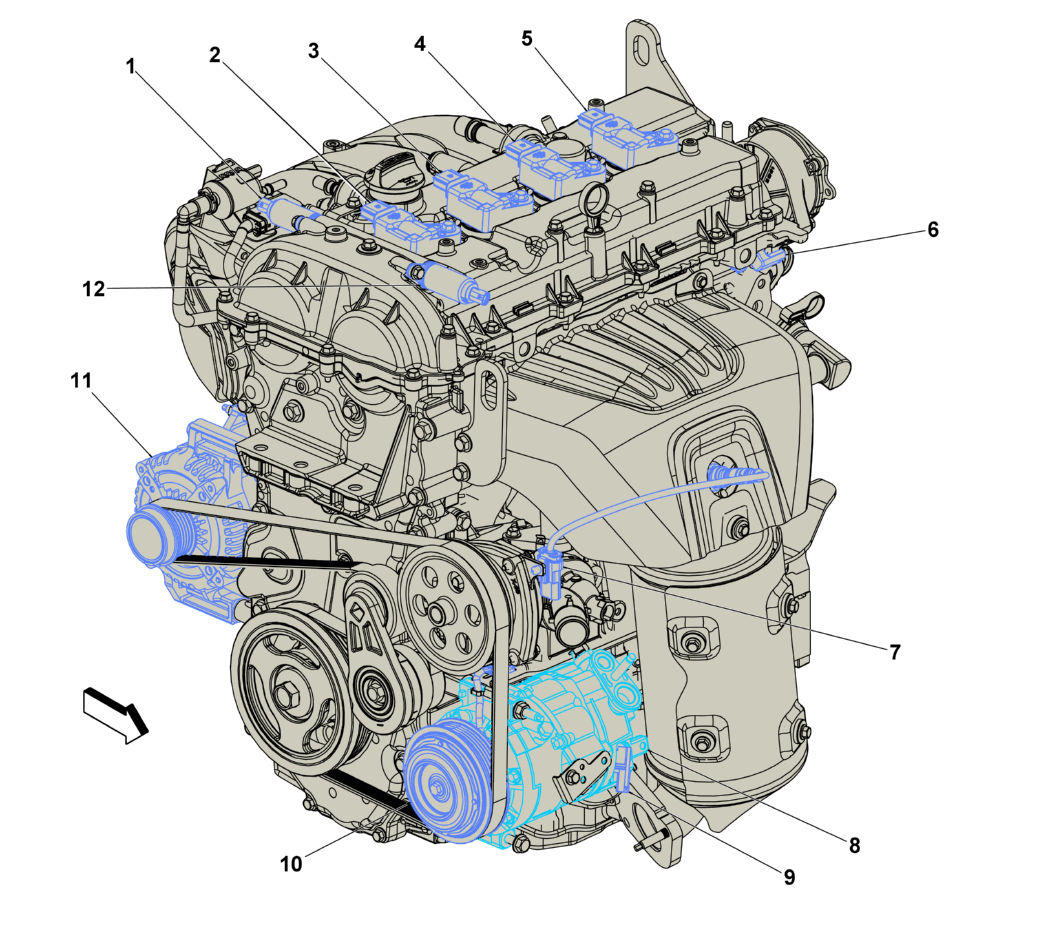

Engine Components - Right Front (LCV)
Engine Components - Right Front (LCV)
| Items |
|---|
| 1: Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LCV) |
| 2: T8A Ignition Coil 1 T8A Ignition Coil 1 (LCV) |
| 3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LCV) |
| 4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LCV) |
| 5: T8D Ignition Coil 4 T8D Ignition Coil 4 (LCV) |
| 6: B23E Camshaft Position Sensor - Exhaust (LCV) B23E Camshaft Position Sensor - Exhaust (LCV) |
| 7: B52A Heated Oxygen Sensor 1 (LCV) B52A Heated Oxygen Sensor 1 (LCV) |
| 8: G1 A/C Compressor |
| 9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 11: G13 Generator G13 Generator X1 |
| 12: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LCV) |
