3rd Row Seat Belt Buckle Replacement

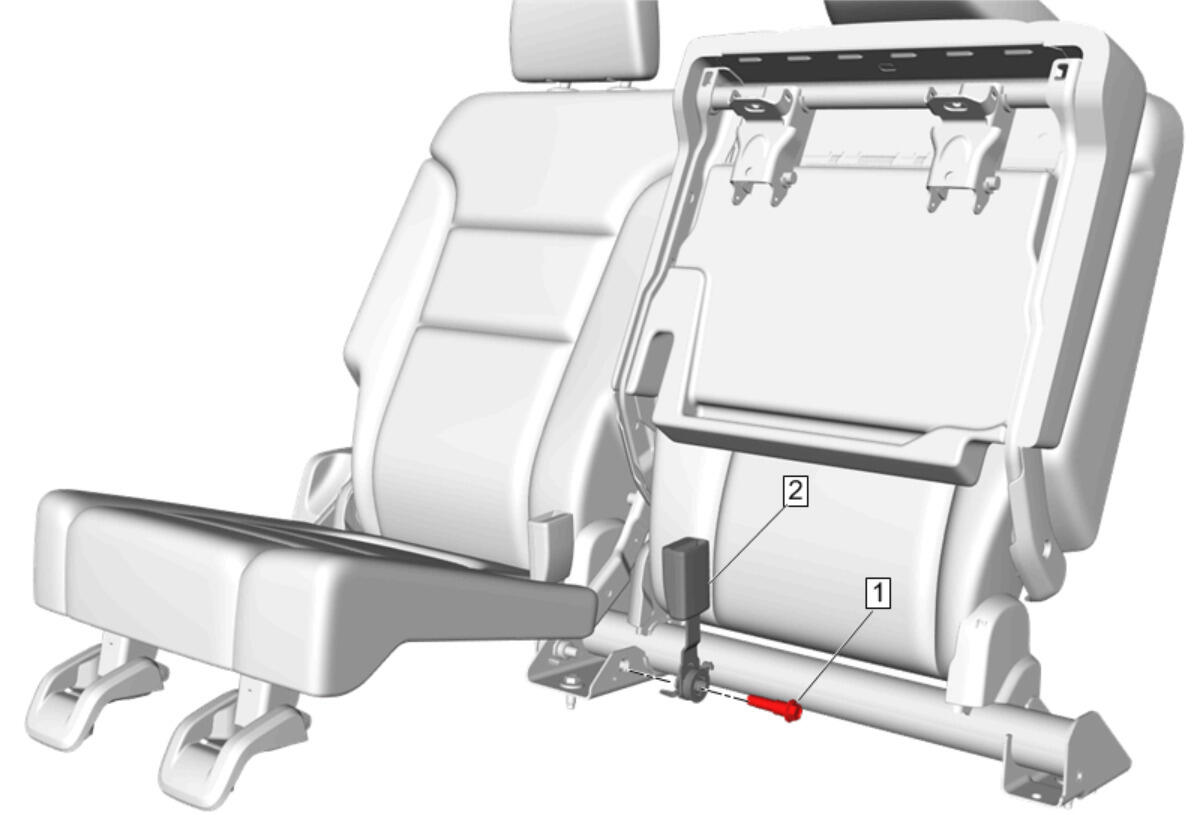

Fig 1: 3rd Row Seat Belt Buckle
GM4377370Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the 3rd row seat front bolts and lift the seat cushion. 3rd Row Seat Removal and Installation
1 3rd Row Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
45 N.m (33 lb ft)
2 3rd Row Seat Belt Buckle
