Rear Camber Adjustment

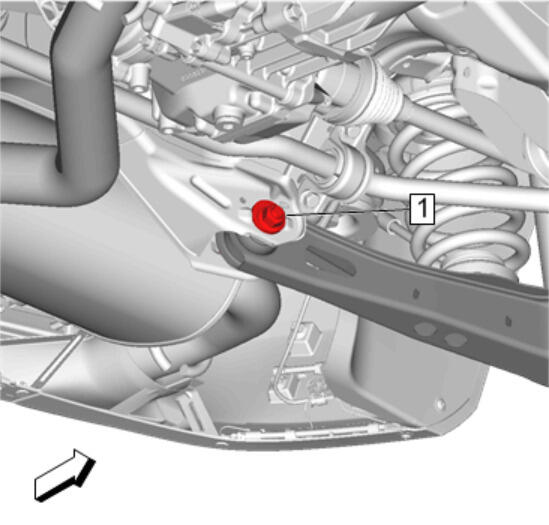

Fig 1: Rear Suspension Lower Control Arm Inner Nut

Courtesy of GENERAL MOTORS COMPANY

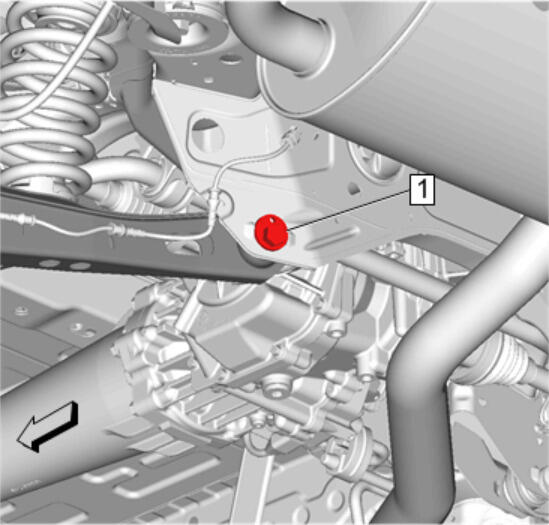

Fig 2: Rear Suspension Lower Control Arm Adjust Bolt

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the nut and bolt enough to maintain the adjustment. Verify the camber reading prior to tightening the bolt to its final torque.

Rotate the rear suspension lower control arm adjust bolt (1) until the correct camber measurement is achieved. Wheel Alignment Measurement

Fig 3: Rear Suspension Lower Control Arm Inner Nut

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Hold the rear suspension lower control arm adjust bolt and tighten the rear suspension lower control arm inner nut (1). Lower Control Arm Replacement
Check the alignment specification and readjust if necessary. Wheel Alignment Specifications
