Human Machine Interface Control Module Replacement

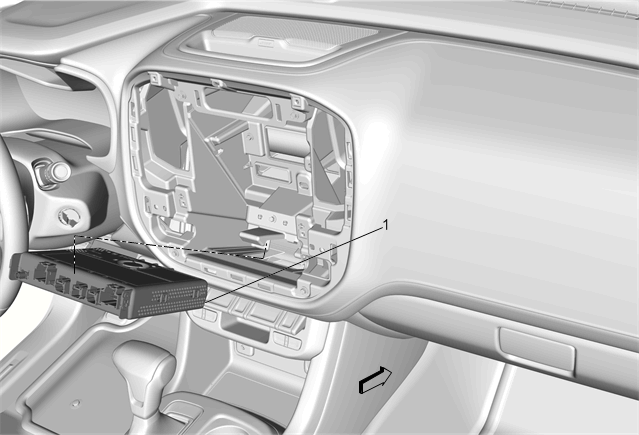

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Disengage top bracket tab from module and slide rearward to release from bracket. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Human Machine Interface Control Module

Procedure

Disconnect the electrical connections.
Disengage top bracket tab from module and slide rearward to release from bracket.
Refer to Control Module References for programming and setup information.
