Remote Control Door Lock Receiver Replacement

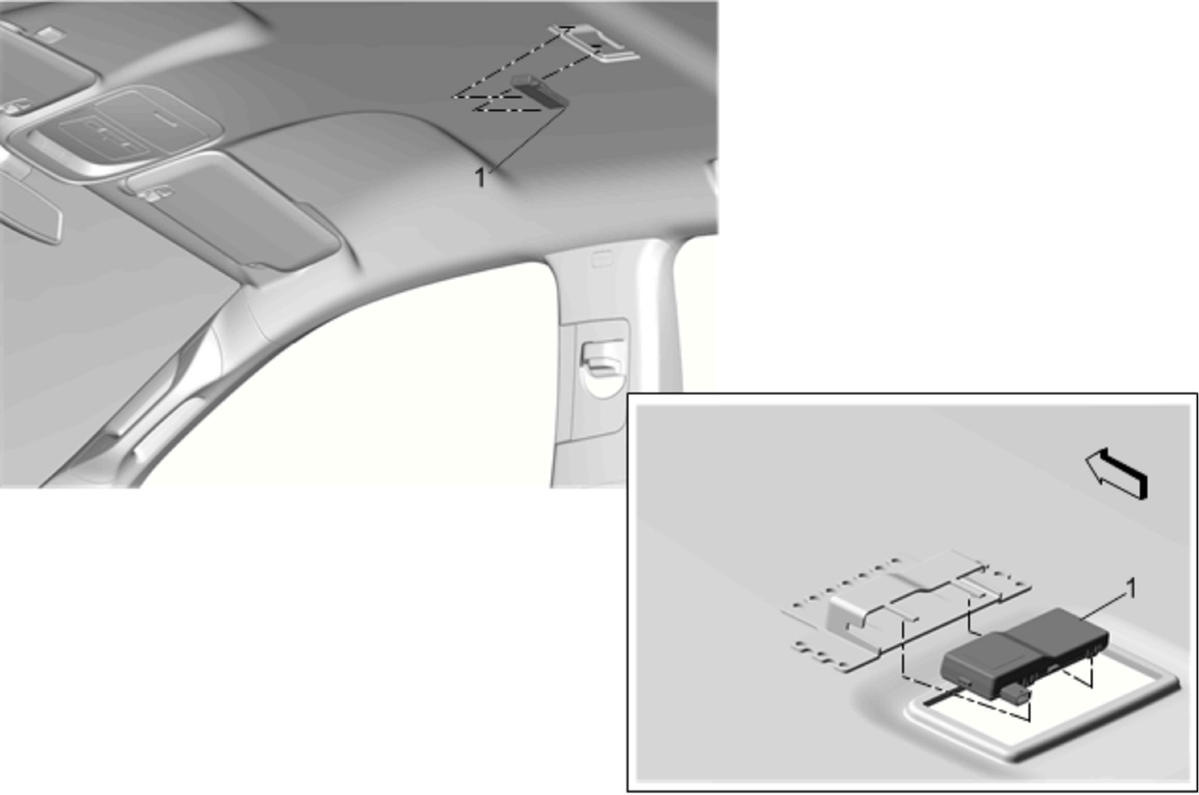

Fig 1: Remote Control Door Lock Receiver
GM3747626Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Center Reading and Courtesy Lamp. Refer to Center Reading and Courtesy Lamp Replacement
1 Remote Control Door Lock Receiver

Procedure

  1. Disconnect the electrical connector and the remote control door lock receiver antenna.
  2. Release the retaining tabs.
