Installation Procedure

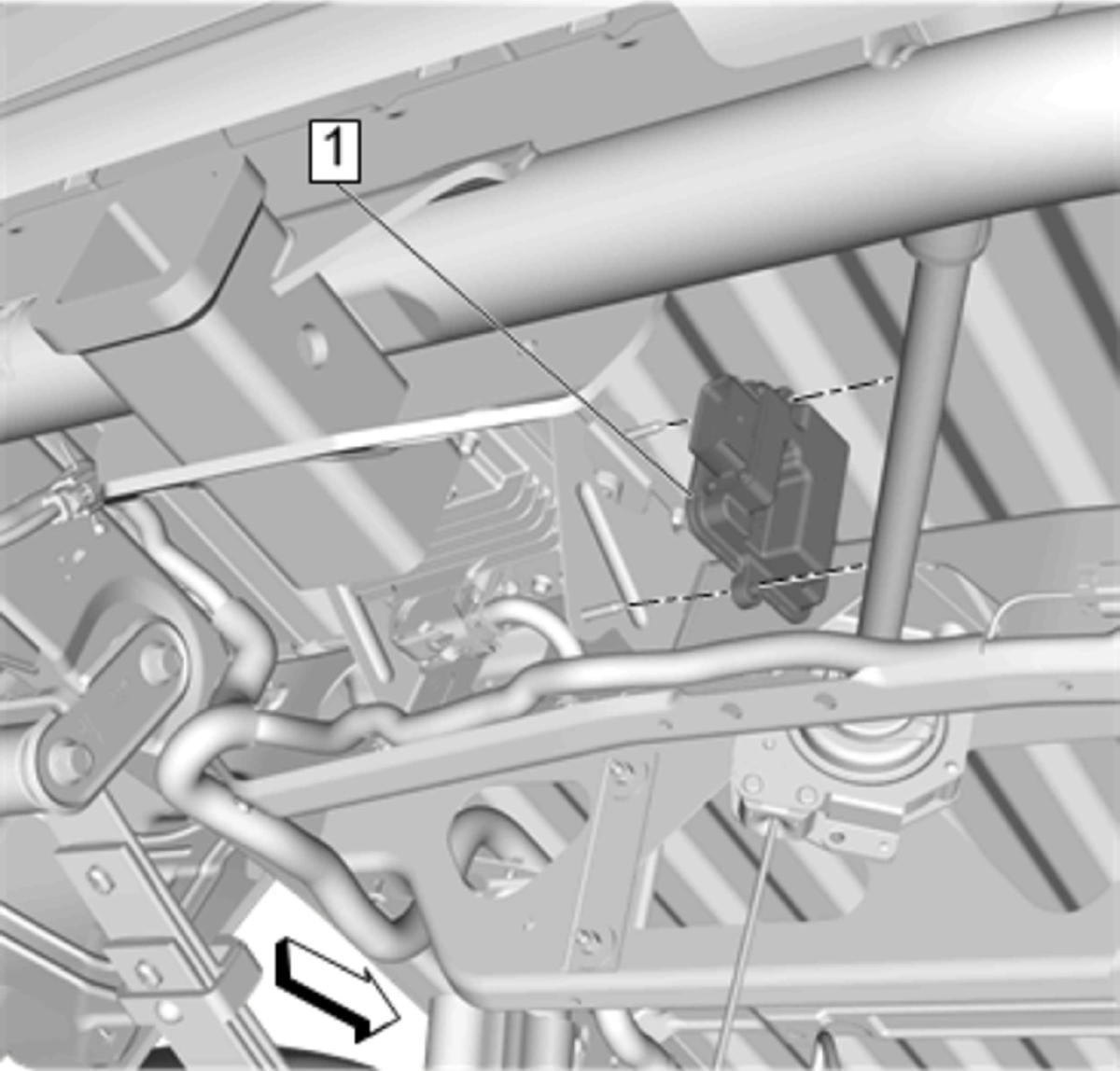

    Fig 1: Trailer Brake Power Control Module
    GM4556992Courtesy of GENERAL MOTORS COMPANY
  1. Install Trailer Brake Power Control Module (1)

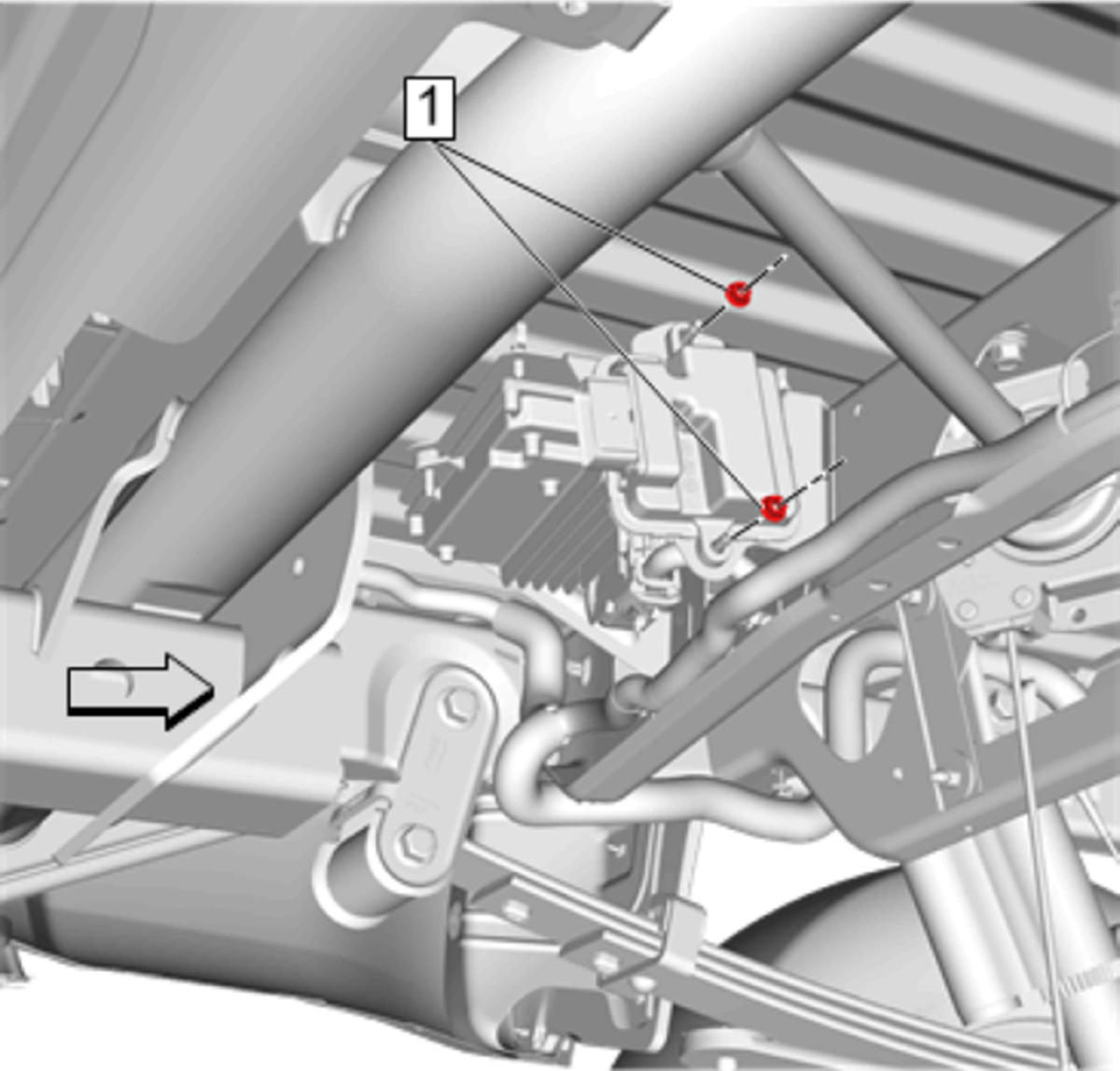

    2. Fig 2: Trailer Brake Power Control Module Nut
    GM4556990Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Trailer Brake Power Control Module Nut (1) and tighten 9 N.m (80 lb in)

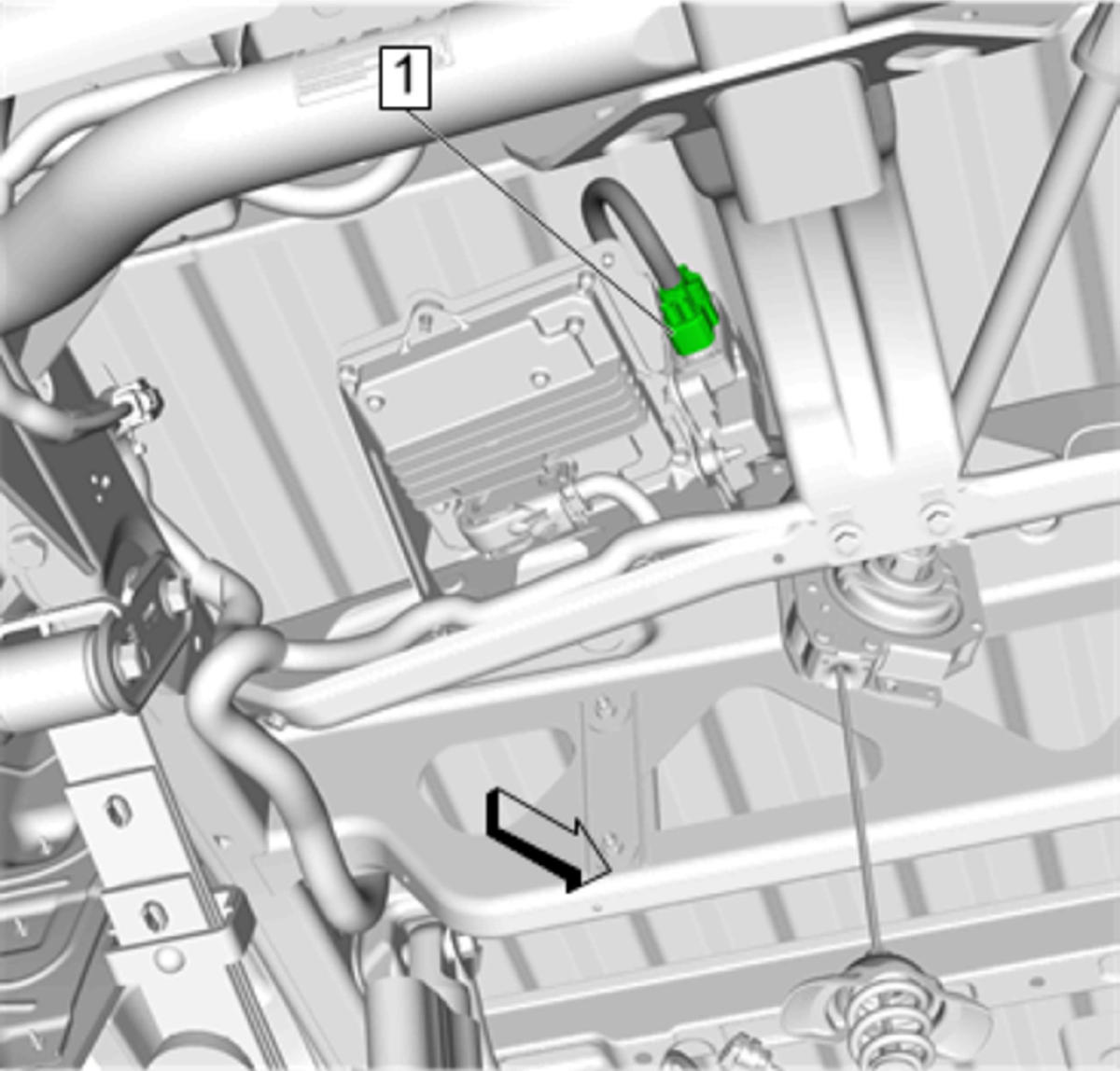

    3. Fig 3: Connect Electrical Connector
    GM4556989Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (1)
  4. Install Spare Tire
  5. Program the trailer brake power control module. Control Module References
