Front of the Instrument Panel Components

Items
1: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2: P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter X1 (-UQA)P19H Speaker - Left Front Tweeter (UQA)
3: P16 Instrument Cluster P16 Instrument Cluster (UDC)P16 Instrument Cluster (UDD)
4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
5: P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel
6: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
7: P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X3
8: A22 Radio Controls
9: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter X1 (UQA)P19V Speaker - Right Front Tweeter X2 (-UQA)
10: A26 HVAC Controls A26 HVAC Controls
11: S32P Seat Heating Switch - Passenger (KA1) S32P Seat Heating Switch - Passenger
12: X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
13: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel
14: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 ((IO3) (MYB))X83 Auxiliary Audio Input X1 ((IOB/IO5/IO6) (MYB))X83 Auxiliary Audio Input X2 ((IO3) (MYB))X83 Auxiliary Audio Input X2 ((IOB/IO5/IO6) (MYB))
15: S32D Seat Heating Switch - Driver (KA1) S32D Seat Heating Switch - Driver
16: S39 Ignition Switch S39 Ignition Switch
17: M93 Key Capture Solenoid Actuator (MYB) M93 Key Capture Solenoid Actuator
18: K89 Immobilizer Control Module K89 Immobilizer Control Module
19: S77 Transfer Case Shift Control Switch (NQ6/NQ7) S77 Transfer Case Shift Control Switch
20: S30 Headlamp Switch S30 Headlamp Switch
21: S76 Trailer Brake Control Switch (JL1) S76 Trailer Brake Control Switch

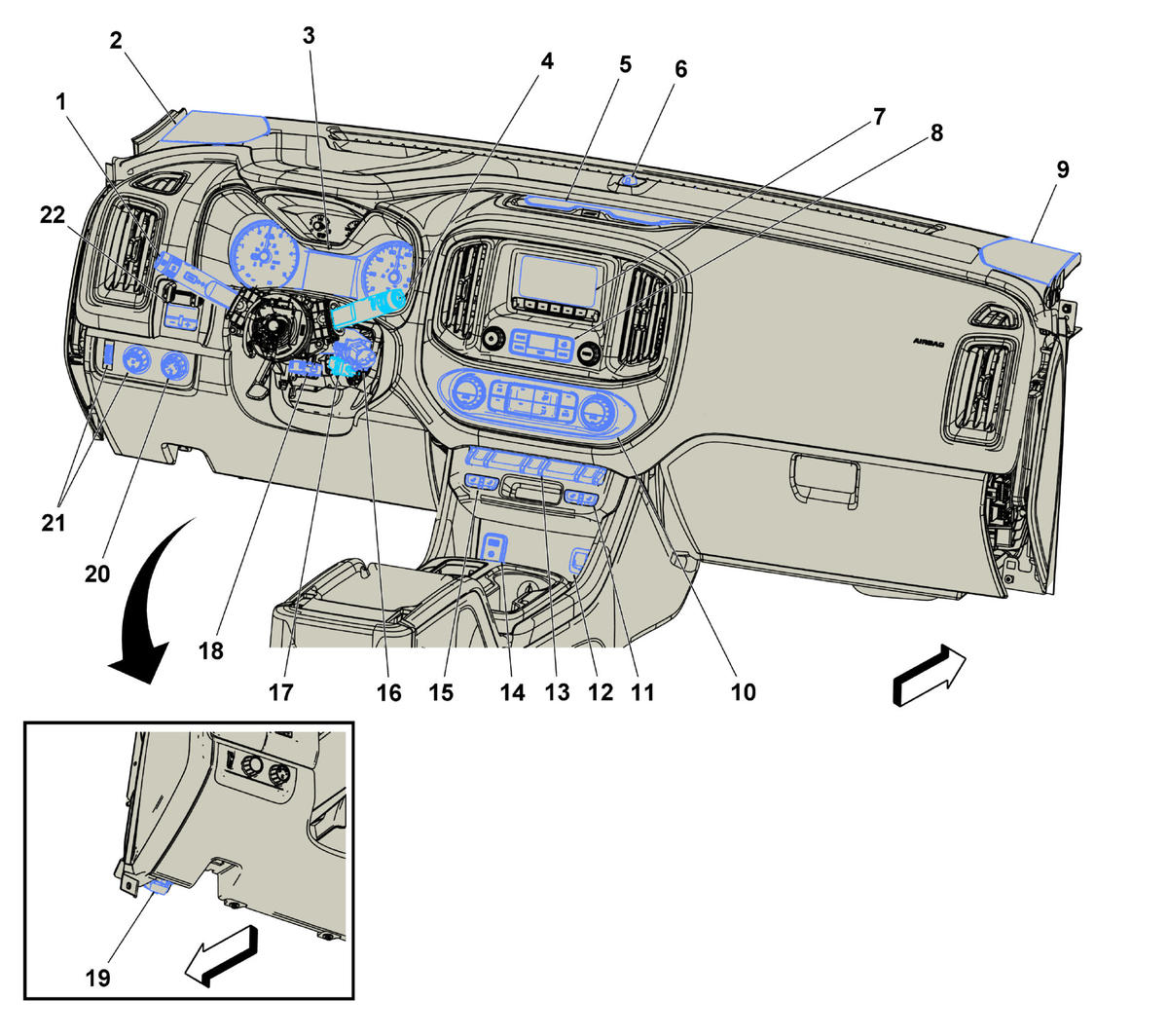

Fig 1: Front of the Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
