Body Control Module Bracket Replacement

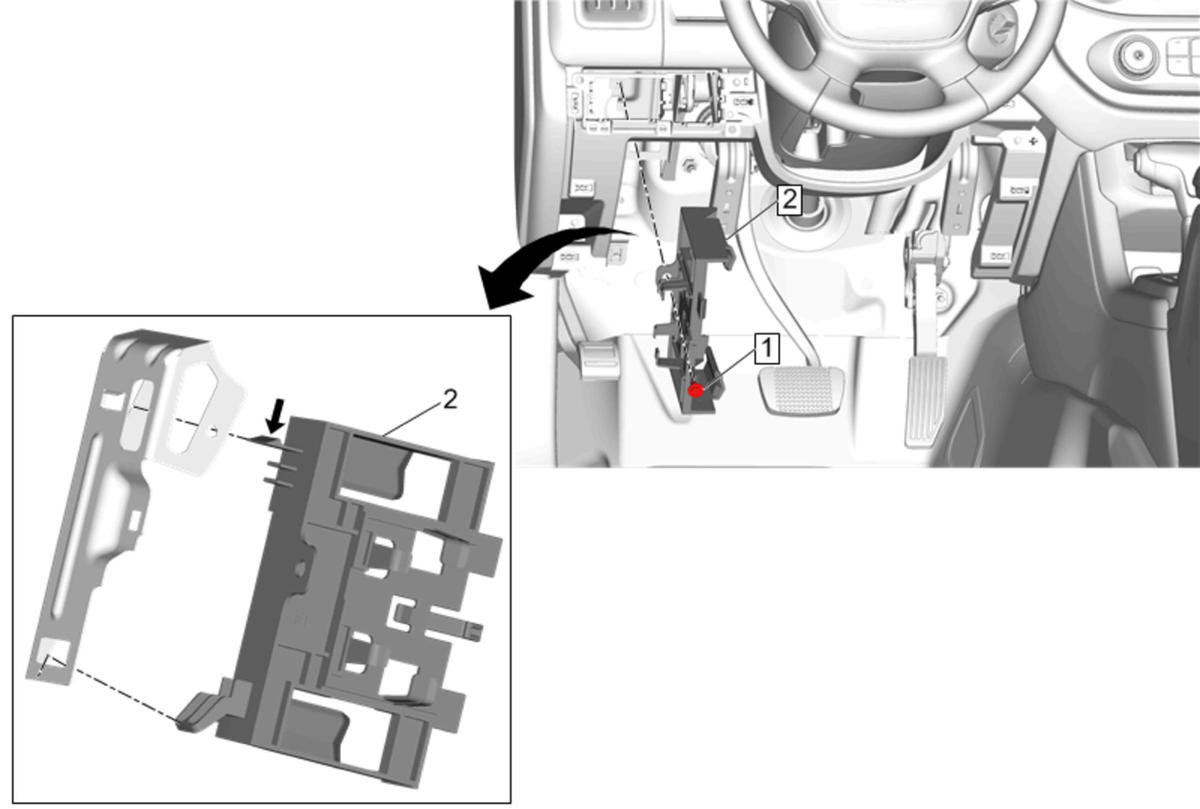

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Body Control Module. Refer to Body Control Module Replacement
1	Body Control Module Bracket Bolt CAUTION: Refer to Fastener Caution Tighten 7.5 N.m (66 lb in)
2	Body Control Module Bracket Procedure Release the retaining tab. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove Body Control Module. Refer to Body Control Module Replacement

Body Control Module Bracket Bolt

CAUTION:

Tighten
7.5 N.m (66 lb in)

Body Control Module Bracket

Procedure
