Serial Data Gateway Module Replacement

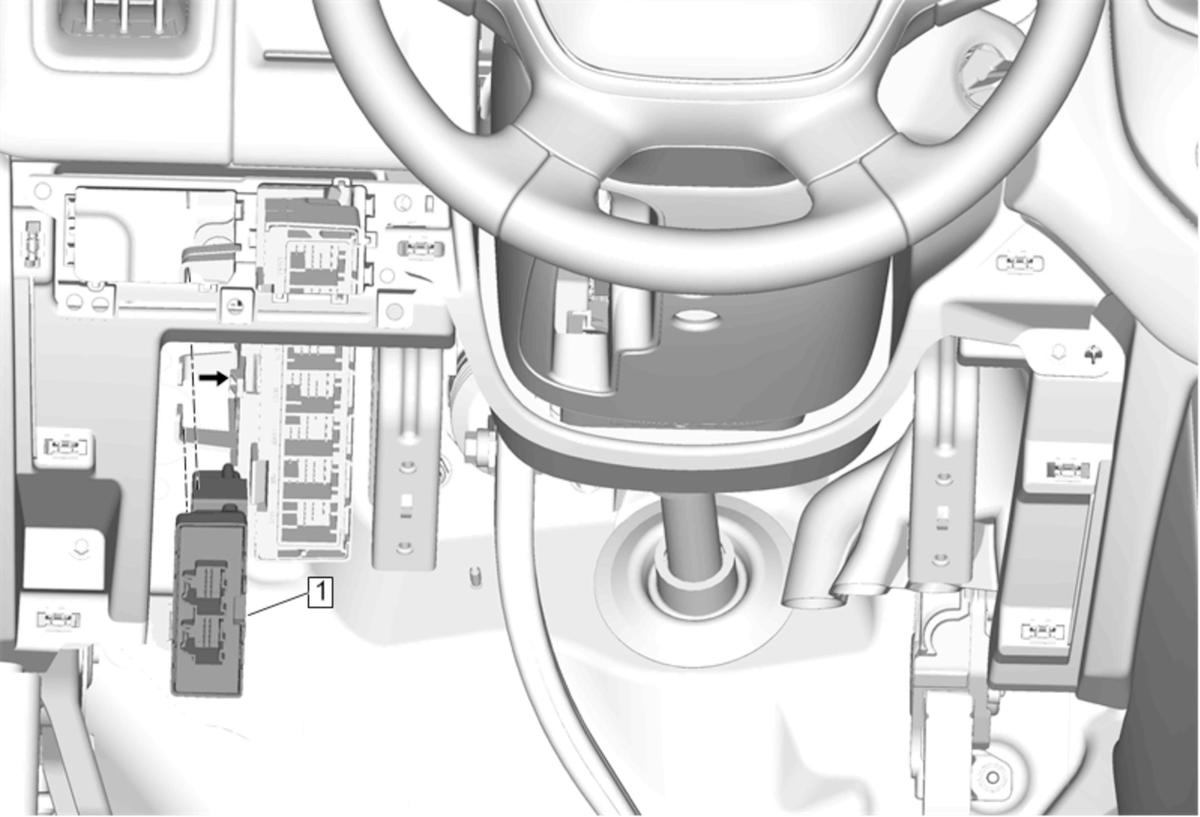

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
