Isolated Low Speed GMLAN

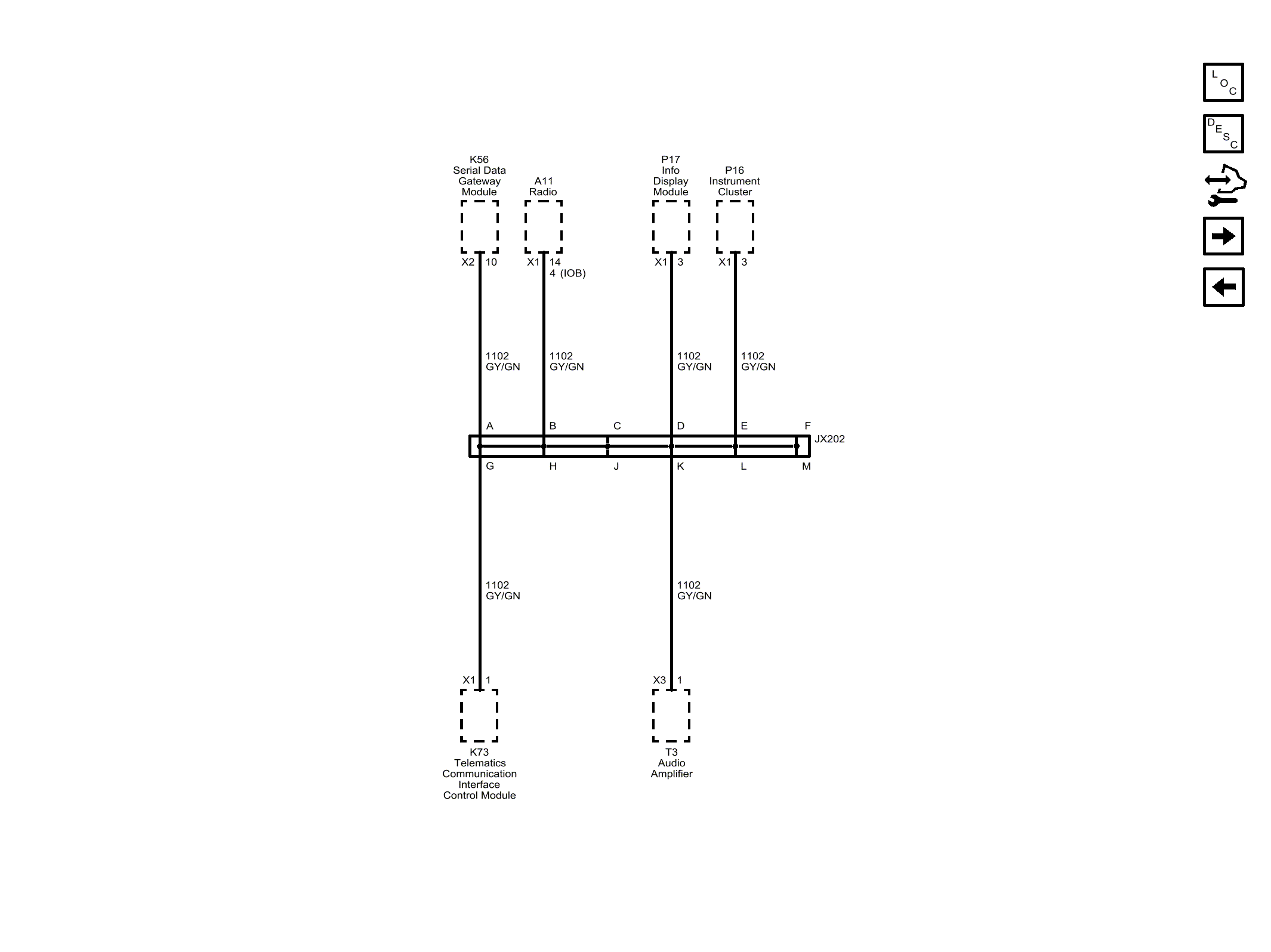

Fig 1: Isolated Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
