Powertrain Expansion Bus (LCV, LGZ)

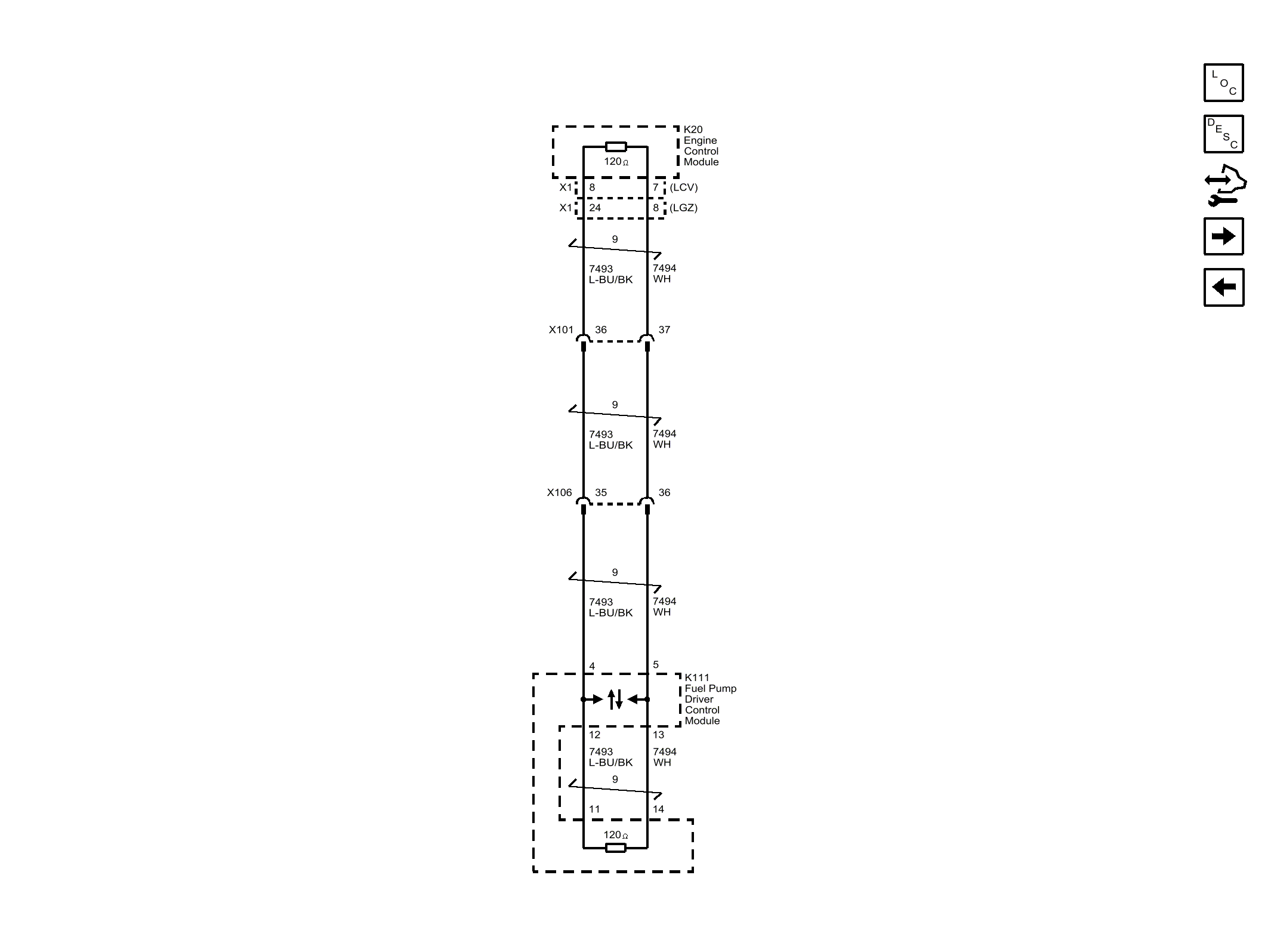

Fig 1: Powertrain Expansion Bus (LCV, LGZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
