Chassis Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

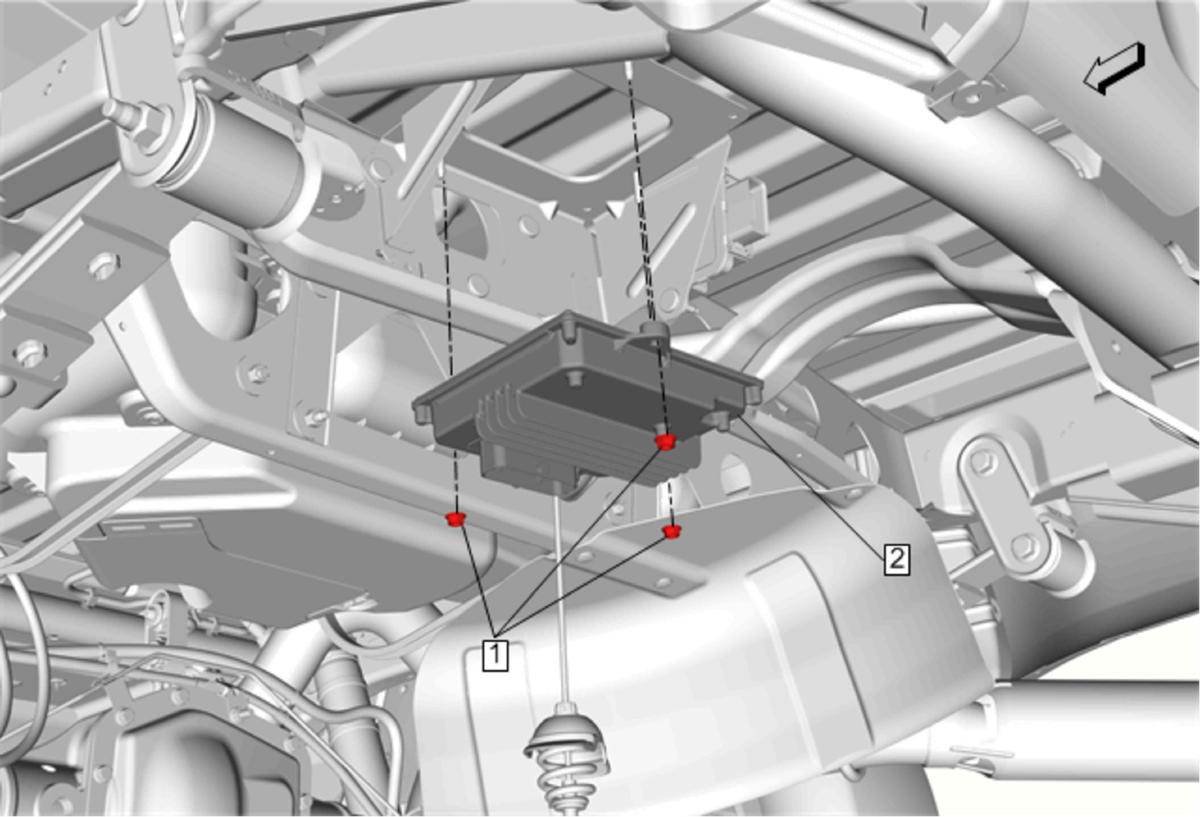

Fig 1: Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the spare tire.
1	Chassis Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Chassis Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Preliminary Procedures

Chassis Control Module Fastener (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Chassis Control Module

Procedure
