Installation Procedure

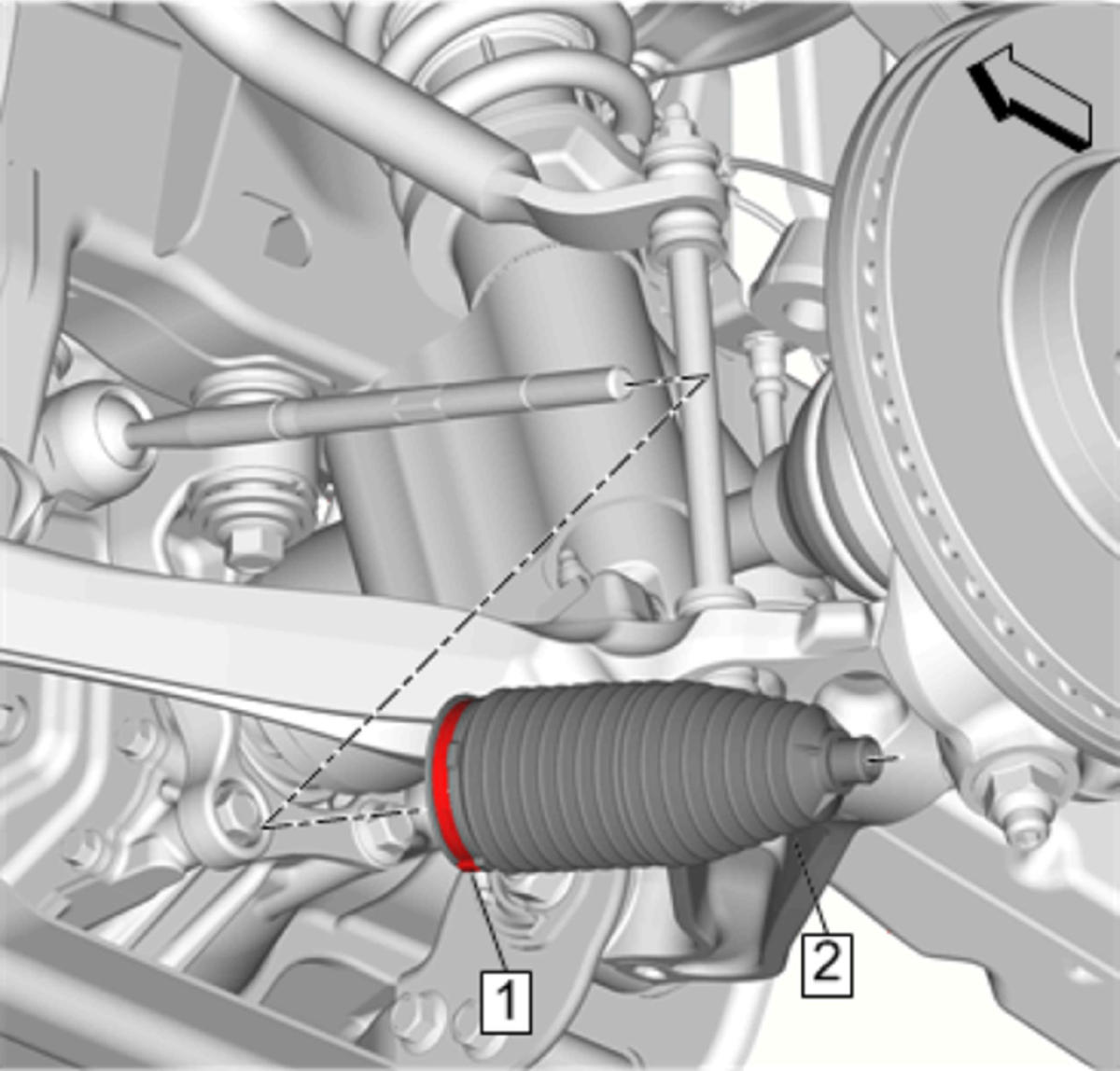

    Fig 1: Steering Gear Boot And Inner Clamp
    GM4569565Courtesy of GENERAL MOTORS COMPANY
  1. Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
  2. Position the steering gear boot (2) on the steering gear.

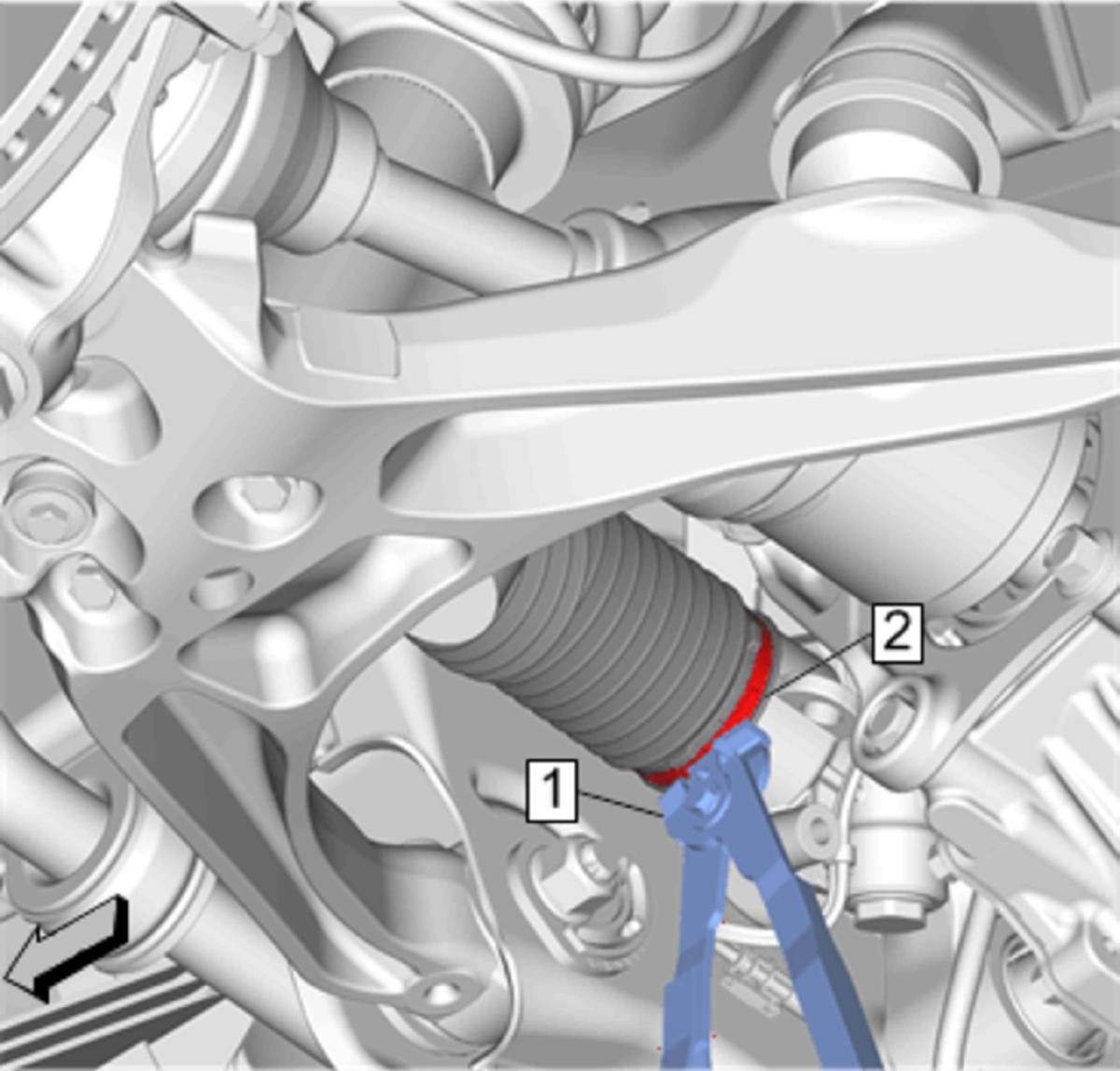

    3. Fig 2: Using Pliers To Tighten Steering Gear Boot Inner Clamp
    GM4569567Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH-22610  pliers (1) to tighten the steering gear boot inner clamp (2).
    4. Fig 3: Steering Linkage Inner Tie Rod Nut And Steering Gear Boot Outer Clamp
    GM4569558Courtesy of GENERAL MOTORS COMPANY
  4. Install Steering Gear Boot Outer Clamp (2)
  5. Install Steering Linkage Inner Tie Rod Nut (1)
  6. Install Steering Linkage Outer Tie Rod. Refer to Steering Linkage Outer Tie Rod Replacement (With ZR2)
  7. Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
