Parking Assist Control Module Replacement

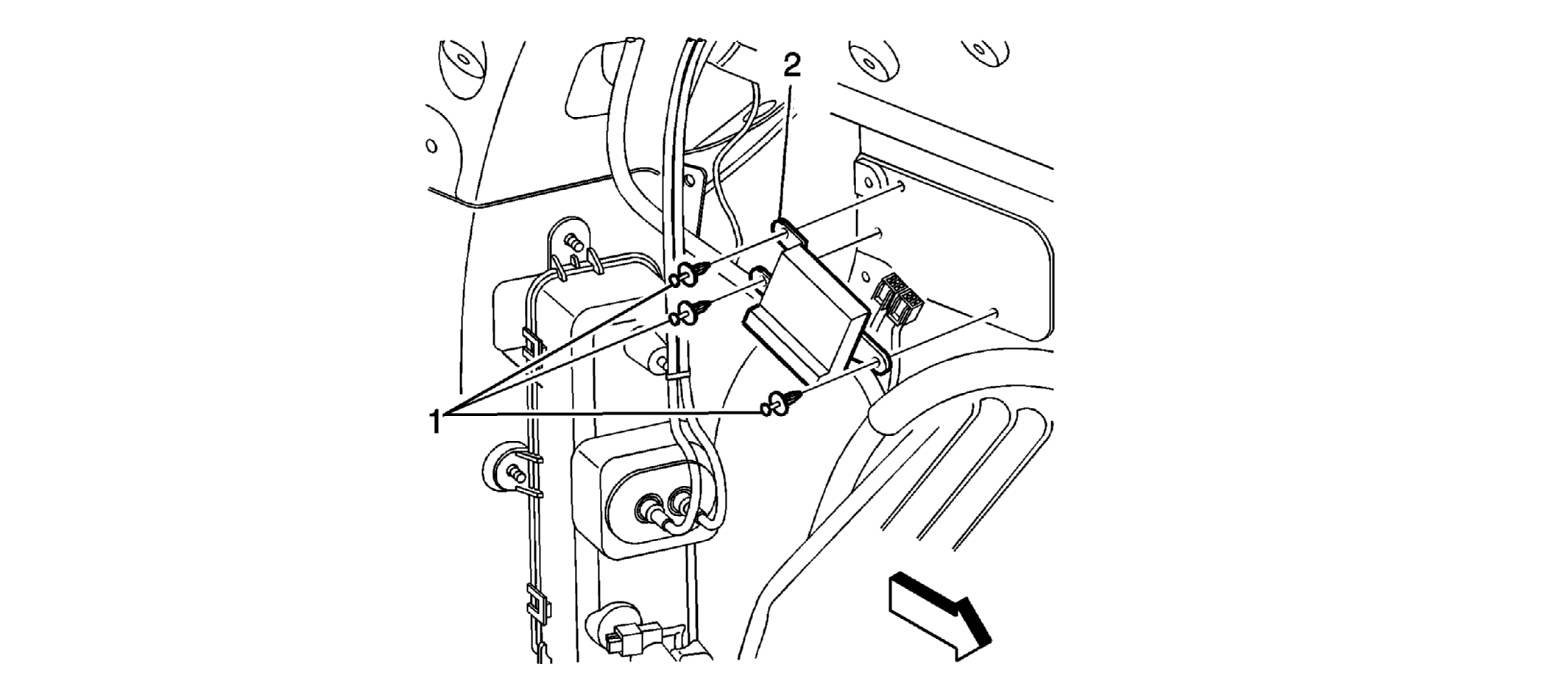

Fig 1: Rear Object Alarm Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side .
1	Rear Object Alarm Module Retainers (Qty: 3)
2	Rear Object Alarm Module Procedure Disconnect the electrical connectors. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side .

Rear Object Alarm Module Retainers (Qty: 3)

Rear Object Alarm Module

Procedure
