Theft Deterrent Module Replacement

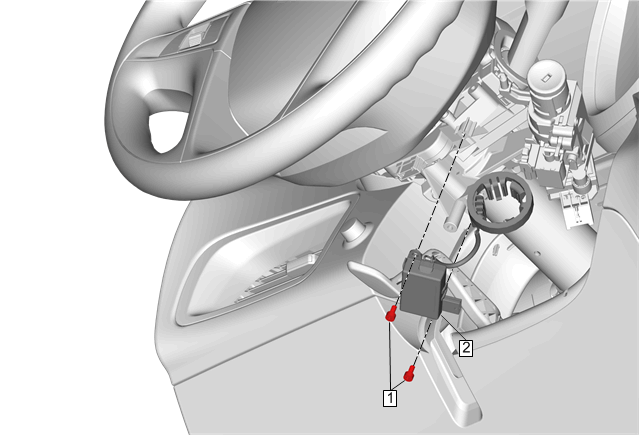

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Steering Column Shroud. Refer to Steering Column Shroud Replacement
1	Theft Deterrent Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Program the theft deterrent module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Steering Column Shroud. Refer to Steering Column Shroud Replacement

Theft Deterrent Module Bolt (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Theft Deterrent Module

Procedure
